Commercial air-cooled beverage display cabinets NW-SC series
Commercial air-cooled beverage display cabinets

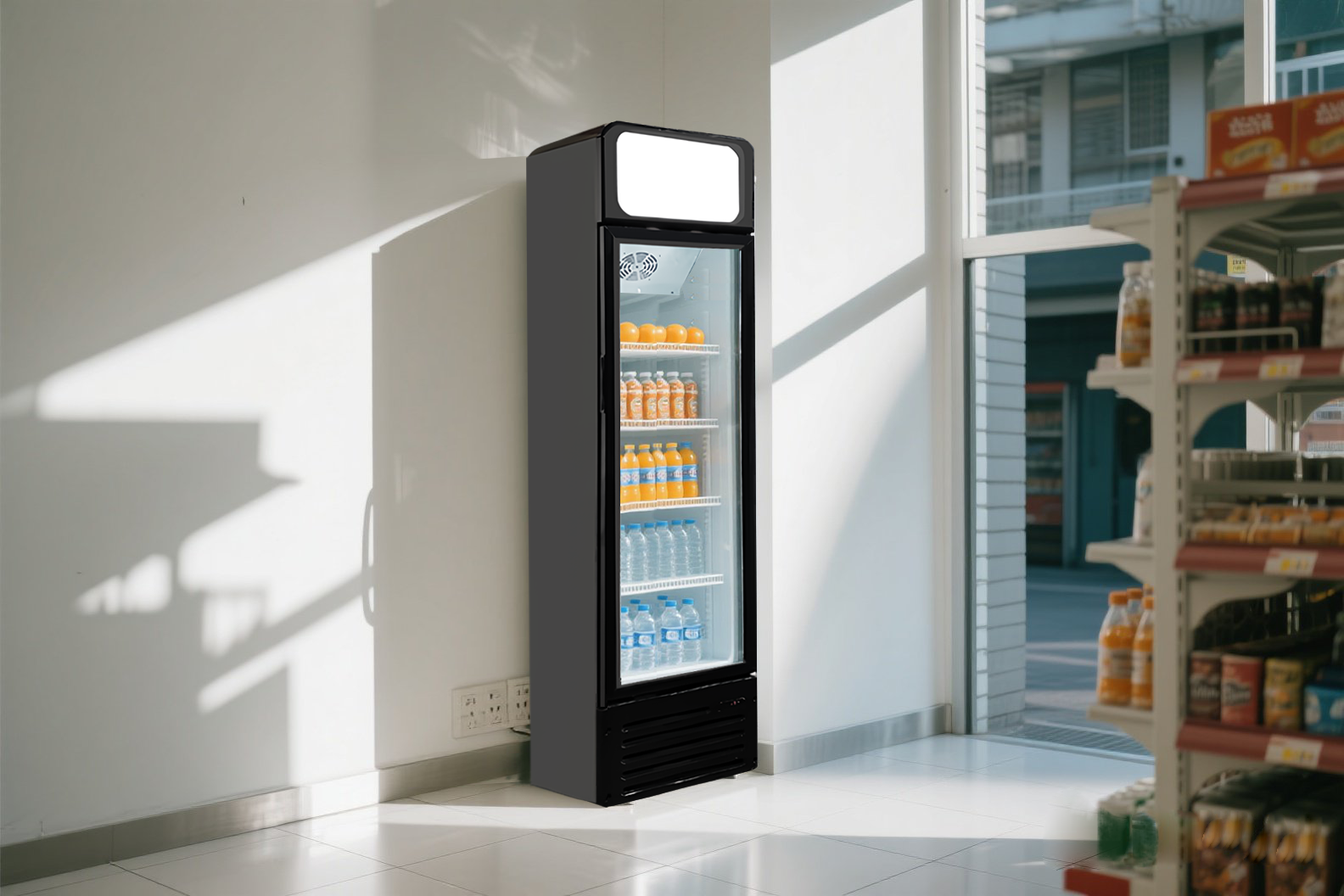

The design of transparent glass doors or cabinets allows customers to clearly see the beverages, stimulating their purchasing desire. For example, the diverse beverages displayed in supermarkets attract passing customers to make purchases.
Customized services: From color, size to internal structure and function, it can be customized according to needs, fitting the store layout and brand, and enhancing uniqueness.
The shelves are adjustable to adapt to different specifications of beverages, rationally planning the space. The large-capacity models can stock up, reducing the frequency of restocking.
The air-cooled refrigeration is uniform and does not frost. The direct-cooled type has a low cost and good energy efficiency. Different refrigeration methods meet various needs, quickly cooling down and locking in freshness.
The appearance and internal display can be customized to fit the brand style and strengthen the brand image. For example, the customized display cabinet of Pepsi-Cola can highlight the brand characteristics.
The "Stop" setting turns off the refrigeration. Turning the knob to different scales (such as 1 - 6, Max, etc.) corresponds to different refrigeration intensities. Max is generally the maximum refrigeration. The larger the number or the corresponding area, the lower the temperature inside the cabinet. This helps merchants adjust the refrigeration temperature according to their needs (such as seasons, types of beverages stored, etc.) to ensure that the beverages are in a suitable fresh - keeping environment.
The air outlet of the fan in the commercial glass - door beverage cabinet. When the fan is running, air is discharged or circulated through this outlet to achieve heat exchange in the refrigeration system and air circulation inside the cabinet, ensuring uniform refrigeration of the equipment and maintaining an appropriate refrigeration temperature.
The shelf support structure inside the beverage cooler. The white shelves are used to place beverages and other items. There are slots on the side, allowing for flexible adjustment of the shelf height. This makes it convenient to plan the internal space according to the size and quantity of the stored items, achieving reasonable display and efficient utilization, ensuring uniform cooling coverage, and facilitating the preservation of items.
The principle of ventilation and heat dissipation of the beverage cabinet is that the ventilation openings can effectively discharge the heat of the refrigeration system, maintain a suitable refrigeration temperature inside the cabinet, ensure the freshness of beverages. The grille structure can block dust and debris from entering the interior of the cabinet, protect the refrigeration components, and extend the service life of the equipment. A reasonable ventilation design can be integrated with the appearance of the cabinet without destroying the overall style, and it can meet the needs of commodity display in scenarios such as supermarkets and convenience stores.
| Model No | Unit size(W*D*H) | Carton size(W*D*H)(mm) | Capacity(L) | Temperature Range(℃) | Refrigerant | Shelves | N.W/G.W(kgs) | Loading 40′HQ | Certification |
| NW-SC105B | 360*365*1880 | 456*461*1959 | 105 | 0-12 | R600a | 8 | 51/55 | 130PCS/40HQ | CE,ETL |

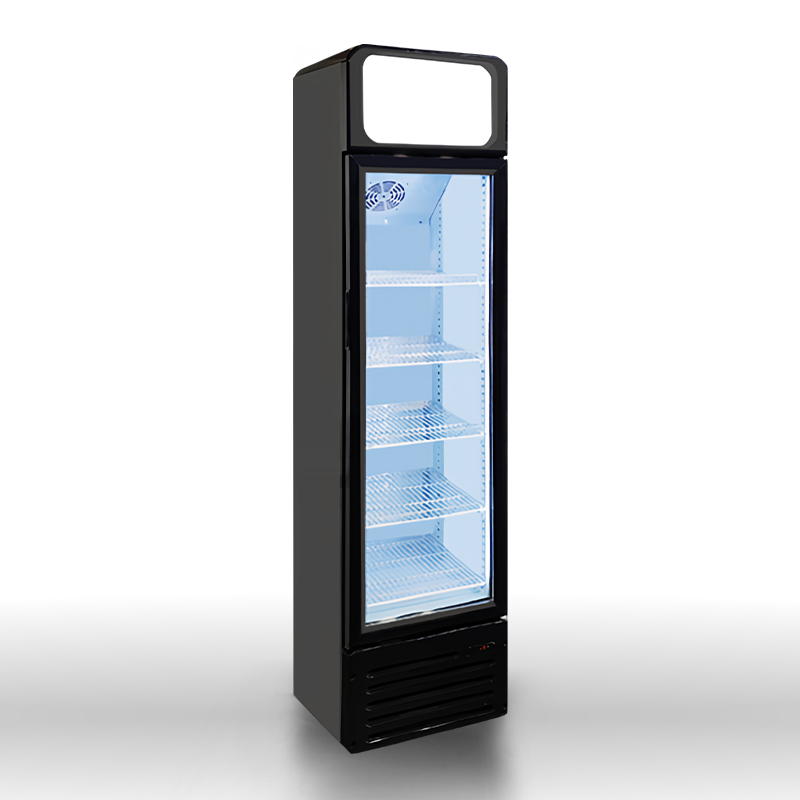

| NW-SC135BG | 420*440*1750 | 506*551*1809 | 135 | 0-12 | R600a | 4 | 48/52 | 92PCS/40HQ | CE,ETL |

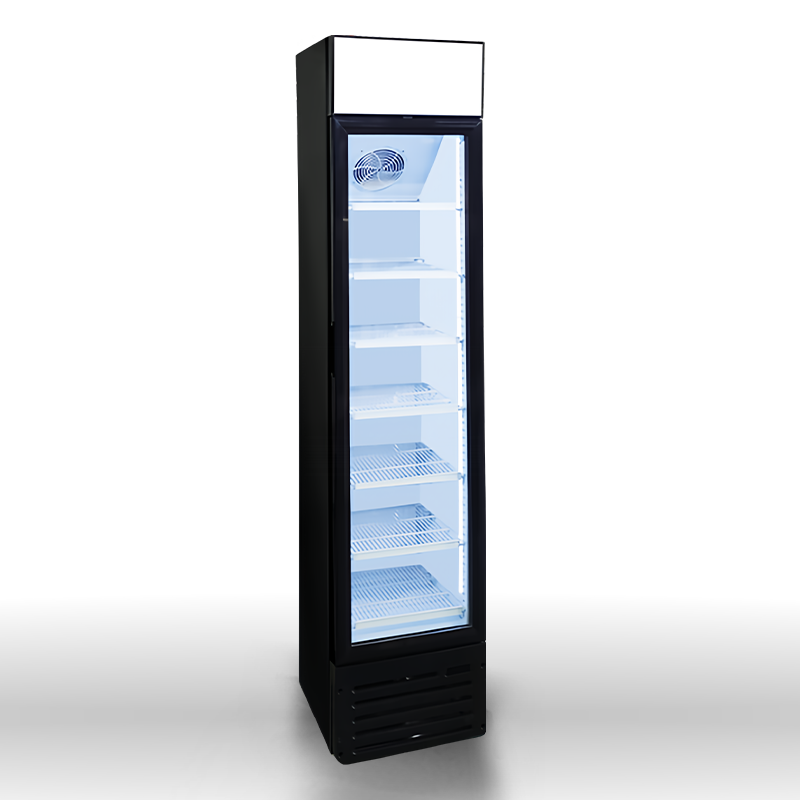

| NW-SC145B | 420*480*1880 | 502*529*1959 | 145 |
0-12 |
R600a |
5 |
51/55 |
96PCS/40HQ |
CE,ETL |
-
