Product Gategory

  • Commercial upright glass door beverage refrigerators of slim series
  • Commercial upright glass door beverage refrigerators of slim series
  • Commercial upright glass door beverage refrigerators of slim series

Commercial upright glass door beverage refrigerators of slim series

Features:

  • Model:NW-LSC145W/220W/225W
  • Full tempered glass door version
  • Storage capacity: 140/217/220liters
  • Fan cooling-Nofrost
  • Upright single  glass door merchandiser refrigerator
  • For commercial drink cooling storage and display
  • Internal LED lighting
  • Adjustable shelves


Detail

Specification

Tags

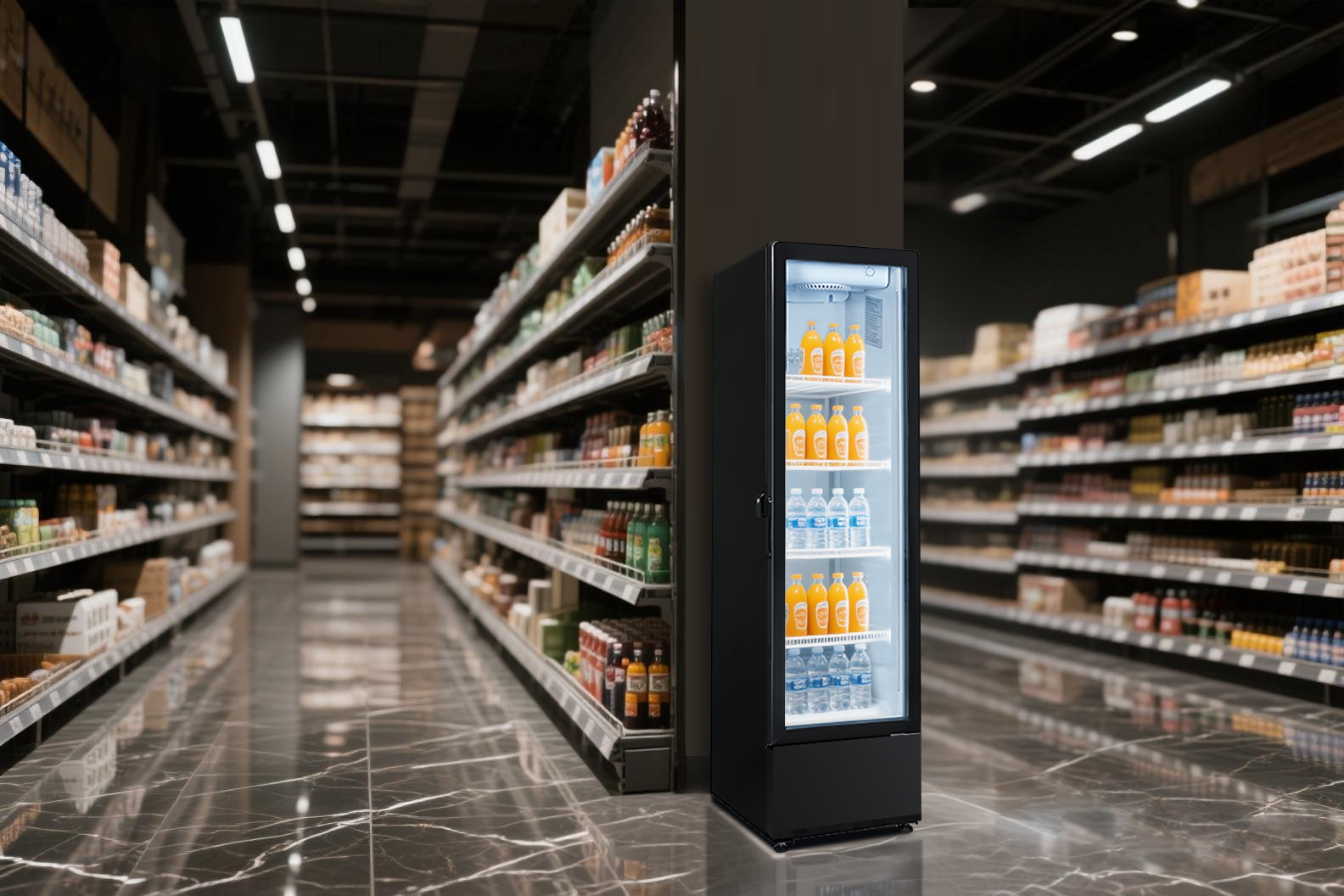

lsc series display cabinet

The minimalist and fashionable design features smooth lines, which can blend in with the overall decoration style of the supermarket. The placement of the beverage cabinet enhances the store's grade and image, creating a comfortable and tidy shopping environment for customers.

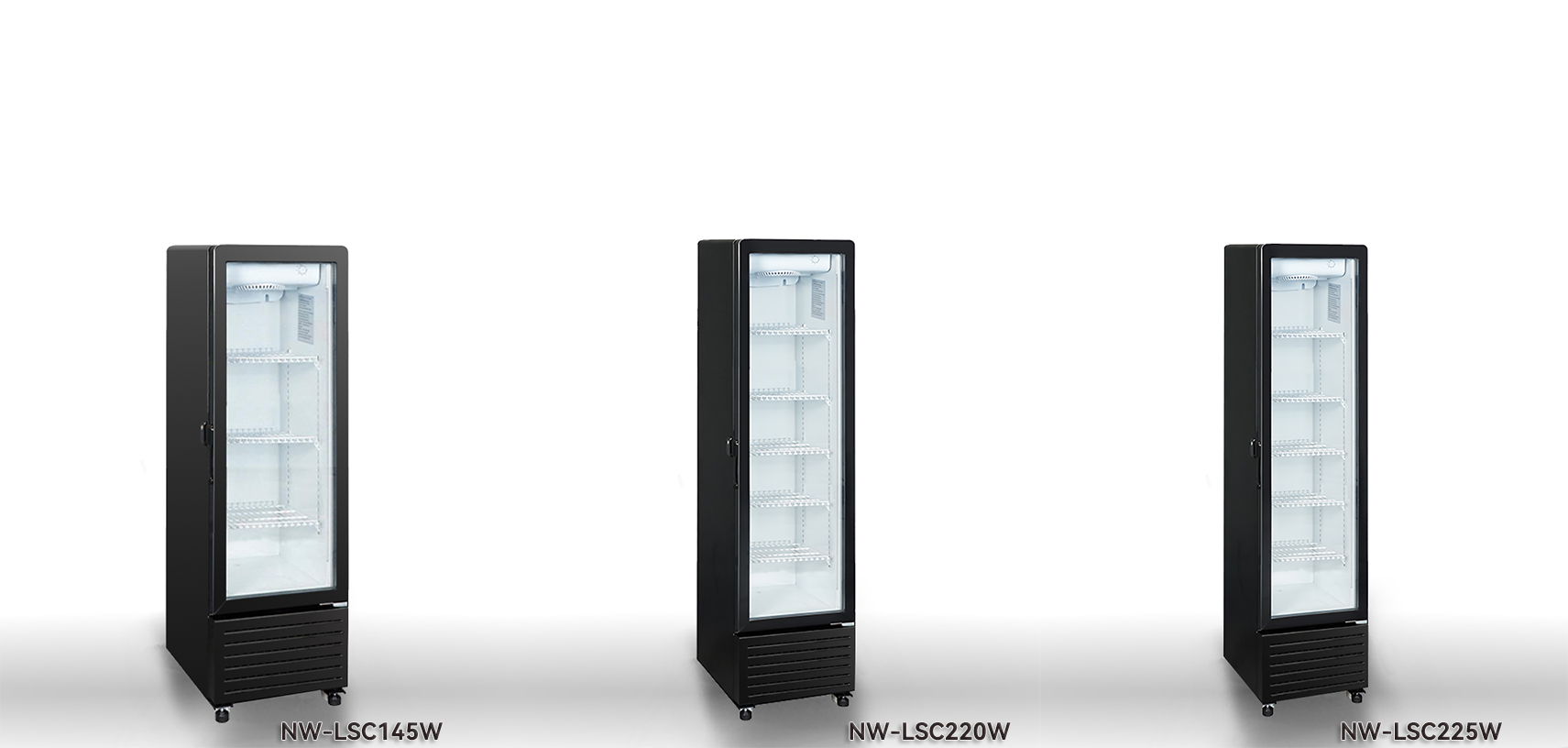

3 series cooler



The bottom usually features a design with roller cabinet feet, making it very convenient to move and use. Supermarkets can adjust the position of the beverage cabinet at any time according to their needs to adapt to different promotional activities or layout adjustment requirements.

With a branded compressor and refrigeration system, it has a relatively large refrigeration power, which can quickly lower the temperature inside the cabinet and keep the beverages within an appropriate refrigeration temperature range, such as 2 - 10 degrees.

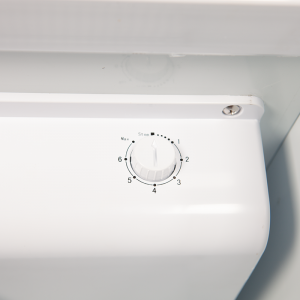

Temperature adjustment rotary button

The "Stop" setting turns off the refrigeration. Turning the knob to different scales (such as 1 - 6, Max, etc.) corresponds to different refrigeration intensities. Max is generally the maximum refrigeration. The larger the number or the corresponding area, the lower the temperature inside the cabinet. This helps merchants adjust the refrigeration temperature according to their needs (such as seasons, types of beverages stored, etc.) to ensure that the beverages are in a suitable fresh - keeping environment.

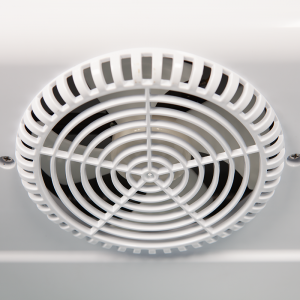

Beverage cabinet circulation fan

The air outlet of the fan in the commercial glass - door beverage cabinet. When the fan is running, air is discharged or circulated through this outlet to achieve heat exchange in the refrigeration system and air circulation inside the cabinet, ensuring uniform refrigeration of the equipment and maintaining an appropriate refrigeration temperature.

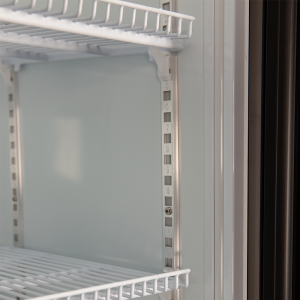

The shelf supports inside the beverage refrigerator

The shelf support structure inside the beverage cooler. The white shelves are used to place beverages and other items. There are slots on the side, allowing for flexible adjustment of the shelf height. This makes it convenient to plan the internal space according to the size and quantity of the stored items, achieving reasonable display and efficient utilization, ensuring uniform cooling coverage, and facilitating the preservation of items.

Heat dissipation holes

The principle of ventilation and heat dissipation of the beverage cabinet is that the ventilation openings can effectively discharge the heat of the refrigeration system, maintain a suitable refrigeration temperature inside the cabinet, ensure the freshness of beverages. The grille structure can block dust and debris from entering the interior of the cabinet, protect the refrigeration components, and extend the service life of the equipment. A reasonable ventilation design can be integrated with the appearance of the cabinet without destroying the overall style, and it can meet the needs of commodity display in scenarios such as supermarkets and convenience stores.

  • Previous:
  • Next:
    • Model No Unit size(W*D*H) Carton size(W*D*H)(mm) Capacity(L) Temperature Range(℃) Refrigerant Shelves N.W/G.W(kgs) Loading 40′HQ Certification
    NW-LSC145 420*525*1430 500*580*1483 140 0-10 R600a 4 39/44 156PCS/40HQ CE,ETL

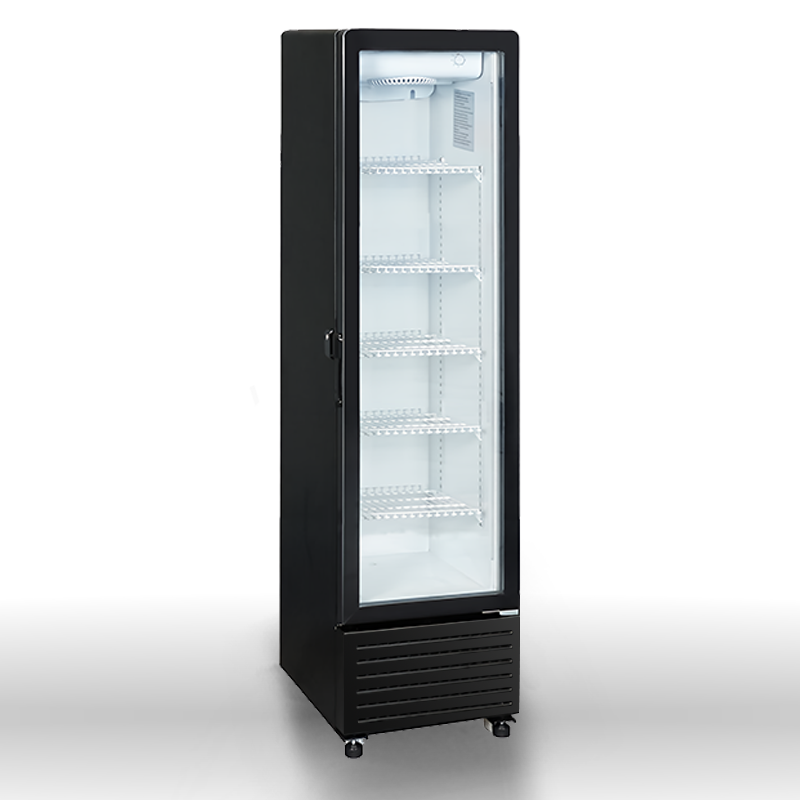

    NW-LSC220 420*485*1880 500*585*2000 220 2-10 R600a 6 51/56 115PCS/40HQ CE,ETL

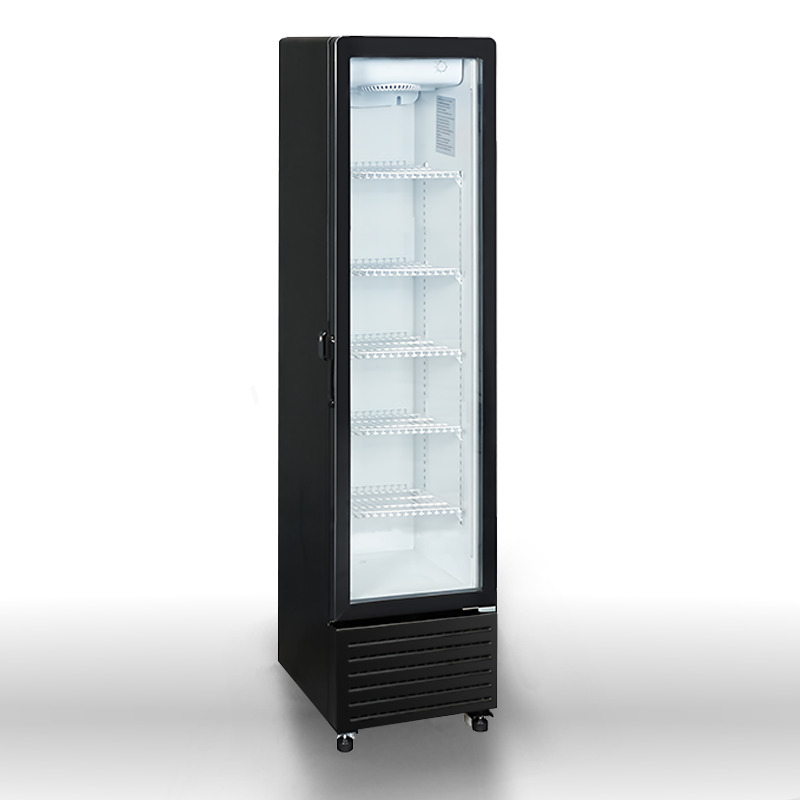

    NW-LSC225 420*525*1960 460*650*2010 217

    0-10

    R600a

    4

    50/56

    139PCS/40HQ

    CE,ETL
