Small Medical Refrigerator for Vaccine and Compact Pharmacy Medicine Storage 2ºC~8ºC

Features:

Small medical refrigerator for vaccine and medicine NW-YC56L is equipped with perfect audible and visual alarms including High/low temperature, High ambient temperature, Power failure, Low battery, Sensor error, Door ajar, Built-in datalogger USB Failure, Main board communication error,Remote alarm.


Detail

Tags

  • Perfect audible and visual alarms including High/Low temperature,High ambient temperature,Power failure , Low battery,Sensor error,Door ajar,Built-in datalogger USB Failure,Main board communication error,Remote alarm
  • The small medical refrigerator with 3high-quality steel wire shelves, the shelves are adjustable to any height for satisfying different requirements
  • Standard with build-in USB datalogger, remote alarm contact and RS485 interface for monitor system
  • 1 cooling fan inside, working while door is closed, stopped while the door is opened
  • The CFC-free polyurethane foam insulating layer is environmentally friendly
  • The electrical heating glass door filled with insert gas performs well in thermal insulation
  • The medical refrigerator is equipped with 2 sensors. When the primary sensor fails, the secondary sensor will be activated immediately
  • The door is equipped with a lock preventing from unauthorized opening and operation

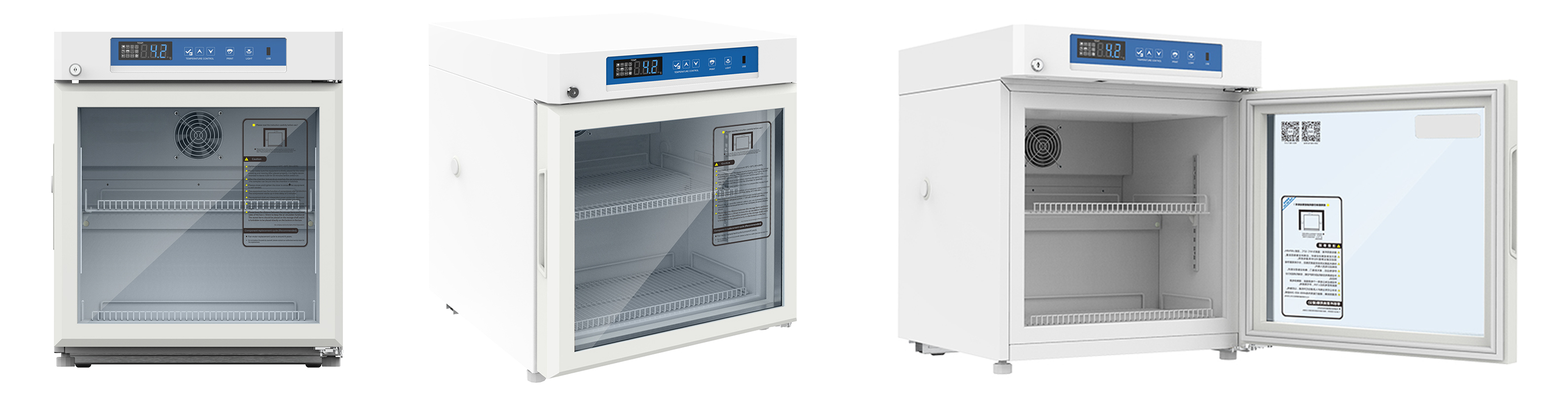

small medical refrigerator for vaccine and medicine

Accurate Control System
High accuracy temperature controller with high sensitivity sensors, keep the temperature within 2~8ºC,
Display accuracy at 0.1ºC.

Refrigeration System
With renowned brand compressor and condenser, better cool performance;
HCFC-FREE refrigerant ensure environmental protection & safety;
Forced air cooling, auto-defrost, temperature uniformity within 3ºC.

Human-oriented
Front opening lockable door with full height handle;
Perfect audible and visual alarms: high and low temperature alarm, sensor
failure alarm, power failure alarm, door ajar alarm;
Cabinet made of high quality steel, inner side with Aluminum plate with spraying material, durable
and easy to clean;
Fitted with 2casters +(2 leveling feet) ;
Standard with build-in USB datalogger, remote alarm contact and RS485 interface for monitor system.


Nenwell Medical Refrigerator Series

Model No Temp. Rang External
Dimension(mm)		 Capacity(L) Refrigerant Certification
NW-YC-56L   540*560*632 56 R600a CE/UL
NW-YC-76L 540*560*764 76
NW-YC130L 650*625*810 130
NW-YC315L 650*673*1762 315
NW-YC395L 650*673*1992 395
NW-YC400L 700*645*2016 400 UL
NW-YC525L 720*810*1961 525 R290 CE/UL
NW-YC650L 715*890*1985 650 CE/UL
(During application)
NW-YC725L 1093*750*1972 725 CE/UL
NW-YC1015L 1180*900*1990 1015 CE/UL
NW-YC1320L 1450*830*1985 1320 CE/UL
(During application)
NW-YC1505L 1795*880*1990 1505 R507 /

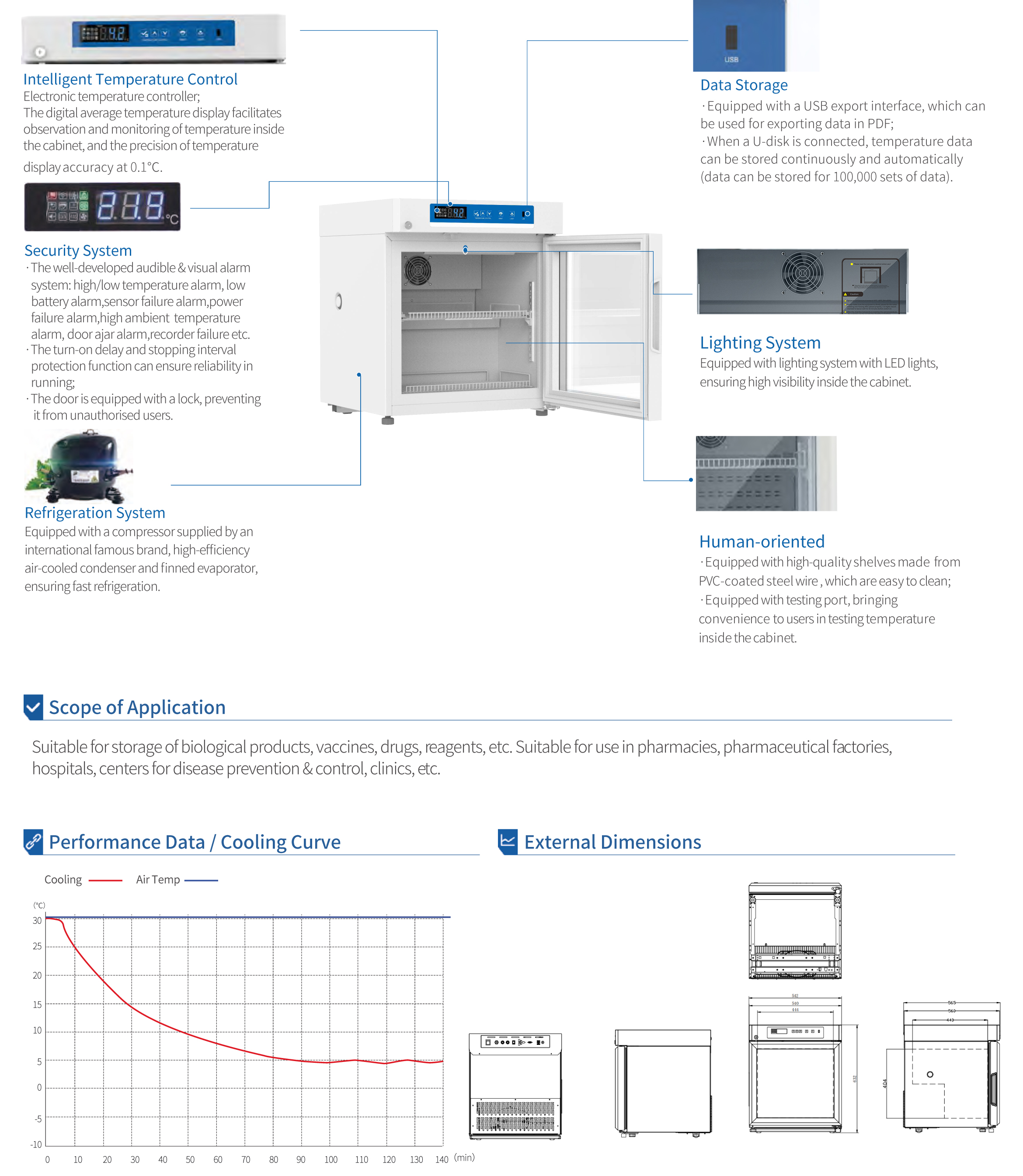

small vaccine refrigerator for medical and medicine
Hospital Fridge for Pharmacy and Medication NW-YC56L
Model NW-YC56L
Cabinet Type Upright
Capacity(L) 55
Internal Size(W*D*H)mm 444*440*404
External Size(W*D*H)mm 542*565*632
Package Size(W*D*H)mm 575*617*682
NW/GW(Kgs) 35/41
Performance
Temperature Range 2~8ºC
Ambient Temperature 16-32ºC
Cooling Performance 5ºC
Climate Class N
Controller Microprocessor
Display Digital display
Refrigeration
Compressor 1pc
Cooling Method Forced air cooling
Defrost Mode Automatic
Refrigerant R600a
Insulation Thickness(mm) L/R:48,B:50
Construction
External Material PCM
Inner Material Aumlnum plate with spraying
Shelves 2 (coated steel wired shelf)
Door Lock with Key Yes
Lighting LED
Access Port 1pc. Ø 25 mm
Casters 2+2( leveling feet)
Data Logging/Interval/Recording Time USB/Record every 10 minutes / 2 years
Door with Heater Yes
Backup battery Yes
Alarm
Temperature High/Low temperature, High ambient temperature
Electrical Power failure, Low battery
System Sensor failure, Door ajar, Built-in USB datalogger failure, Communication failure
Accessories
  Standard RS485, Remote alarm contact
