2ºC~8ºC Small Biomedical And Medical Undercounter Refrigerator For Medicines And Vaccines


  • Item No.: NW-YC130L.
  • Capacity: 130 liter.
  • Temperature rage: 2- 8℃.
  • Small undercounter style.
  • Precision temperature control.
  • Insulated tempered glass door.
  • Door lock and key are available.
  • Glass door with electrical heating.
  • Humanized operation design.
  • High-perfomance refrigeration.
  • Alarm system for failure and exception.
  • Smart temperature control system.
  • Built-in USB interface for data storage.
  • Heavy-duty shelvies with PVC-coating.
  • Interior illuminated with LED Lighting.

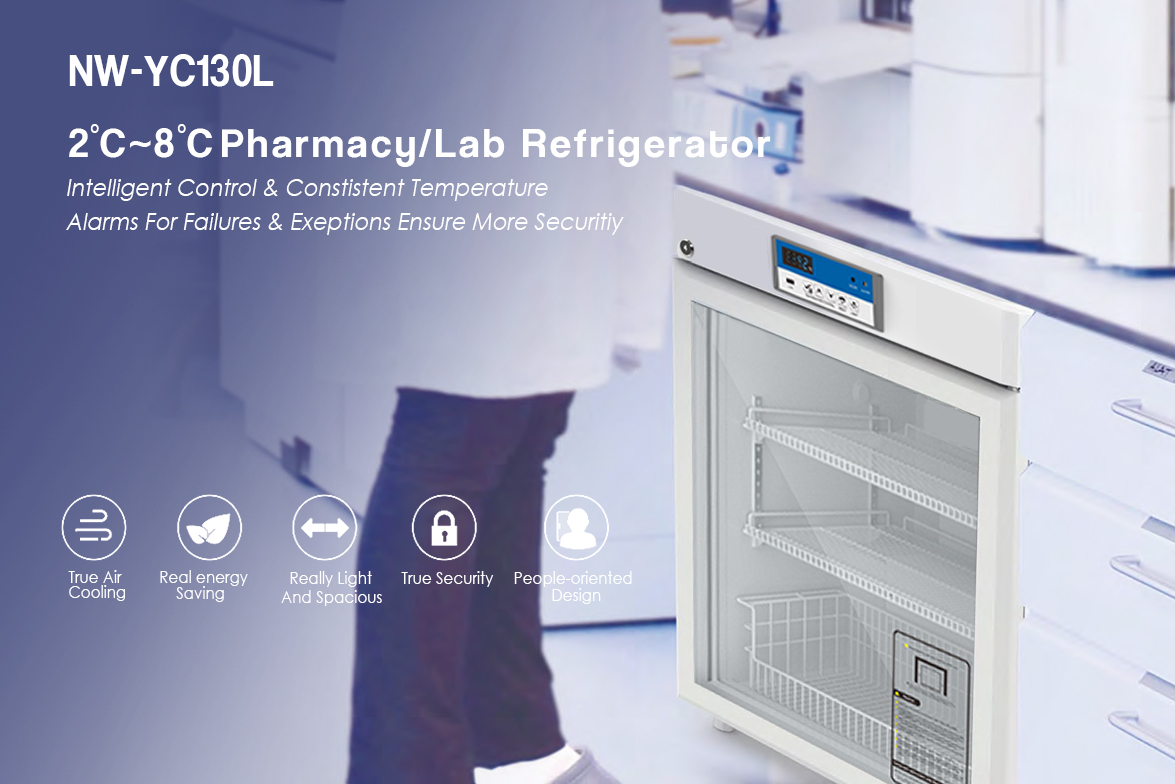

NW-YC130L Small Biomedical Undercounter Refrigerator For Medicines And Vaccines

NW-YC130L is a biomedical and medical refrigerator that offers a professional and stunning appearance and has a storage capacity of 130L for storing medicines and vaccines, it’s a small medical refrigerator that is suitable for undercounter placement, works with an intelligent temperature controller, and provides consistent temperatures in a range of 2℃ and 8℃.  The transparent front door is made of double-layer tempered glass, which is durable enough to prevent a collision, not only that, it also has an electric heating device to help eliminate condensation, and keep the stored items displayed with clear visibility. This pharmacy fridge comes with an alarm system for failure and exception occurrences, greatly protect your stored materials from spoilage. The air-cooling design of this fridge ensures no worry about frosting. With these beneficiary features, it’s a perfect refrigeration solution for hospitals, pharmaceuticals, laboratories, and researching sections to store their medicines, vaccines, specimens, and some special materials with temperature-sensitive.

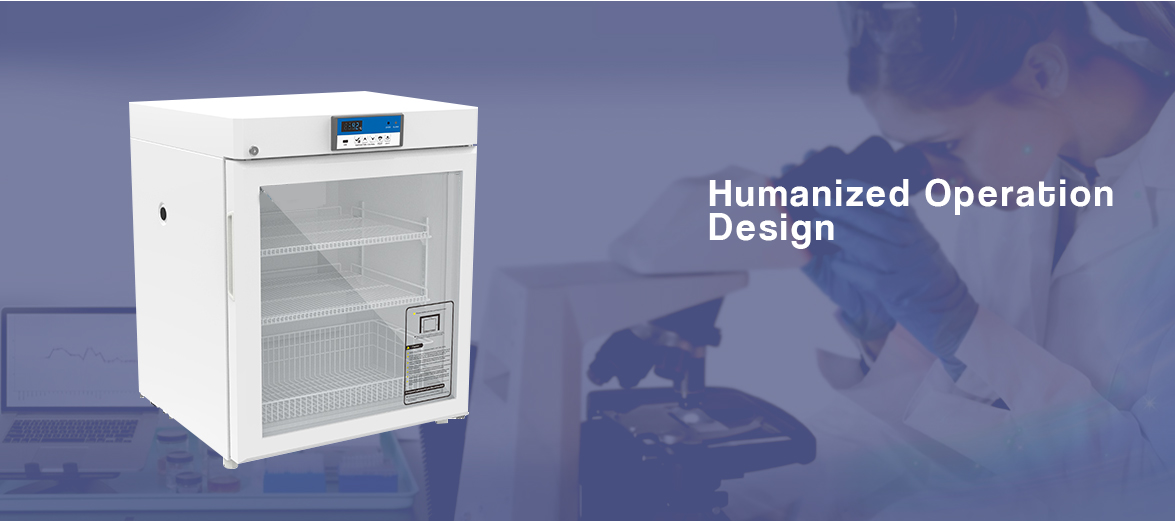

NW-YC130L small undercounter medicine refrigerator with humanized operation design

The clear glass door of this biomedical refrigerator is lockable and comes with a recessed handle, which provides a visible display to easily get accessed to the stored items. And the interior has a super bright lighting system, the light will be on while the door is opened, and will be off while the door is closed. The exterior of this fridge is made of premium stainless steel, and the interior material is HIPS, which is durable and easily cleanable.

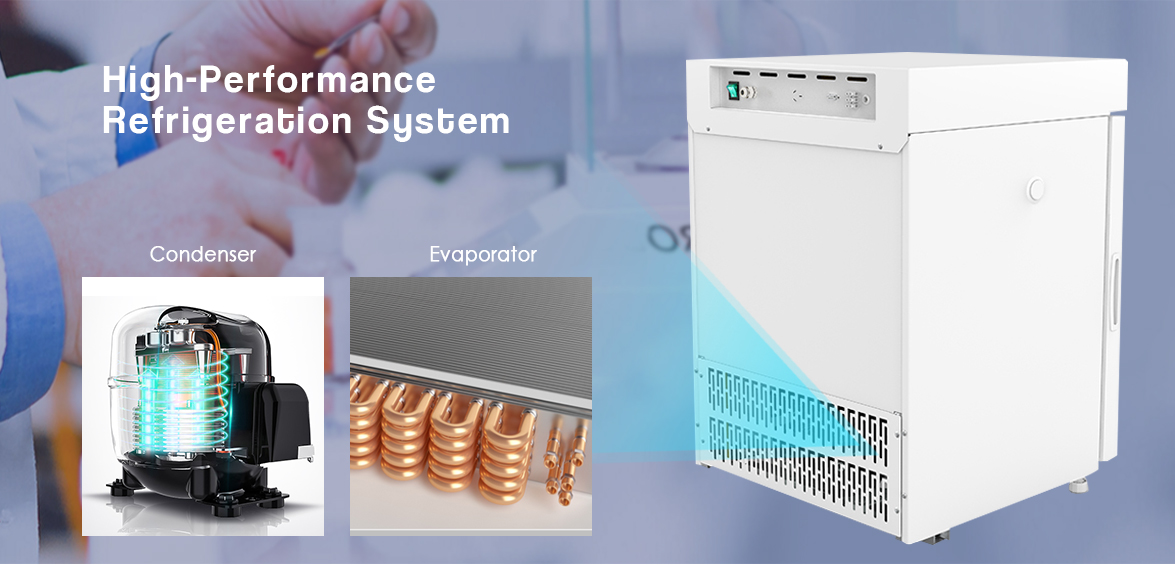

NW-YC130L medical refrigerator for vaccines | high-performance refrigeration system

This small refrigerator works with a premium compressor and condenser, which have features of high refrigeration performance and well keeps the temperature consistency within 0.1℃ in tolerance. Its air-cooling system has an auto-defrost feature. The HCFC-Free refrigerant is an environmentally friendly type and provides more refrigeration efficiency and energy saving.

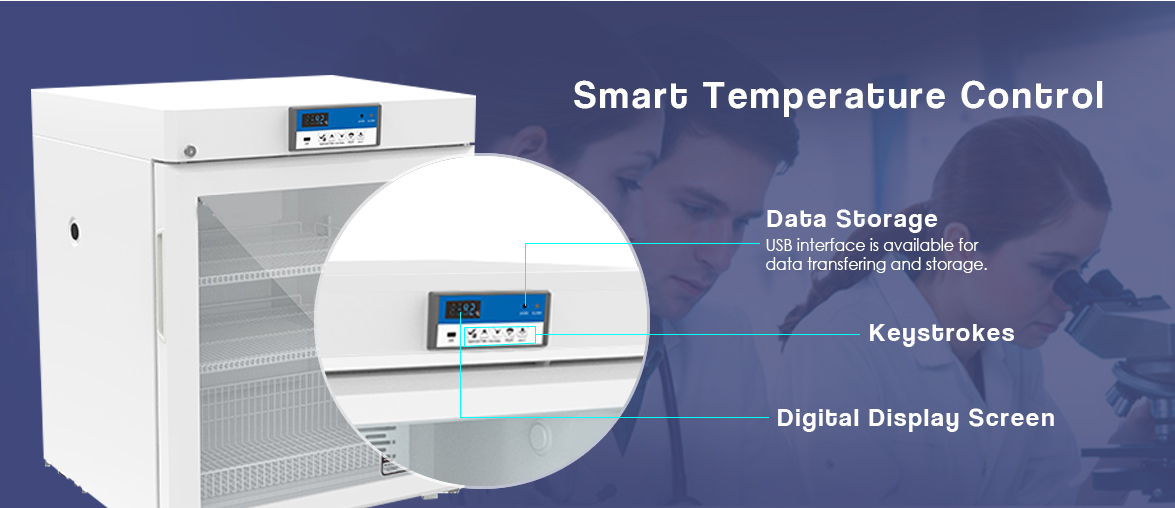

NW-YC130L biomedical refrigerator with smart temperature control system

This biomedical undercounter refrigerator has a temperature control system with a high-precision micro-computer and a stunning digital display screen with a display precision of 0.1℃, and it comes with an access port and RS485 interface for the monitor system. A built-in USB interface is available for storing the last month's data, the data will be transferred and stored automatically once your U-disk is plugged into the interface. A printer is optional. (data can be stored for more than 10 years)

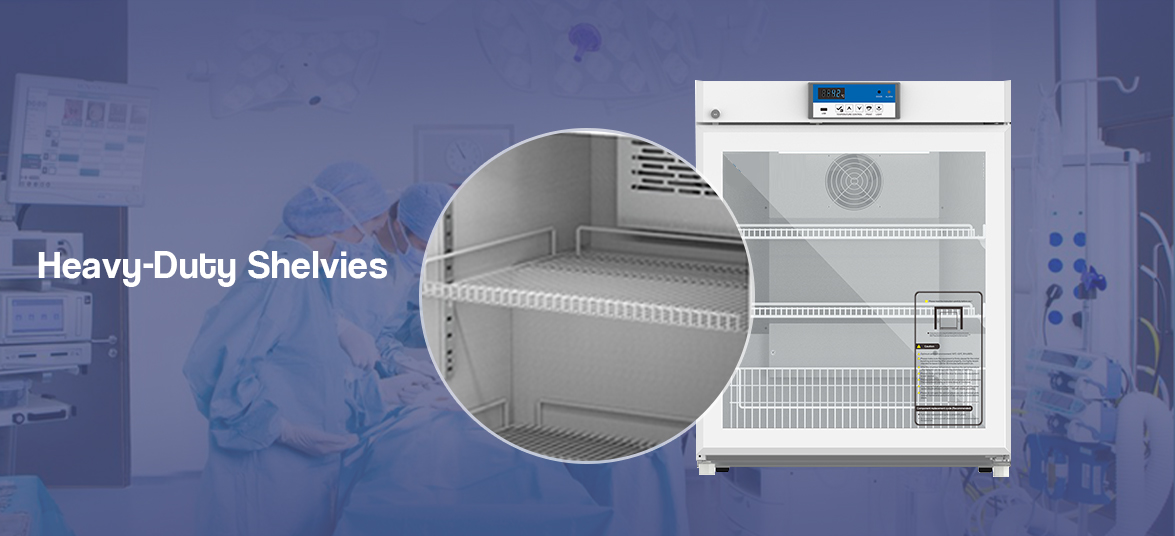

NW-YC130L small refrigerator for medicine | heavy-duty shelves

Interior storage sections are separated by heavy-duty shelves, it’s made of durable steel wire finished with PVC-coating, which is easy to clean and replace, the shelves are adjustable to any height for satisfying different requirements. Each shelf has a tag card for classification.

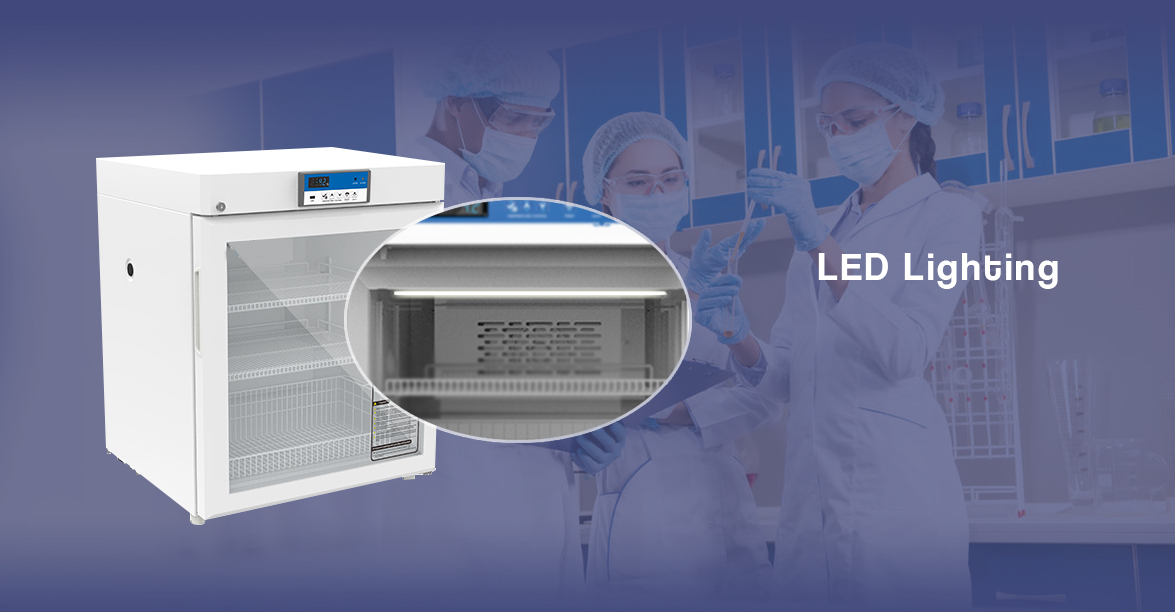

NW-YC130L biomedical undercounter refrigerator with LED lighting

The Interior of the fridge cabinet is illuminated by LED lighting, ensure clear visibility for users to easily get accessed to the stored items.

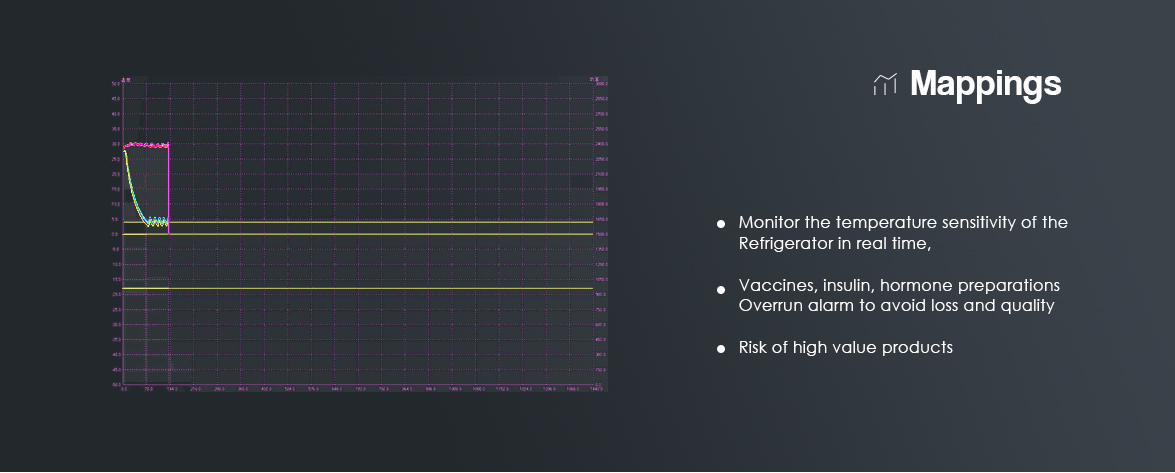

NW-YC130L small medicine refrigerator | mappings

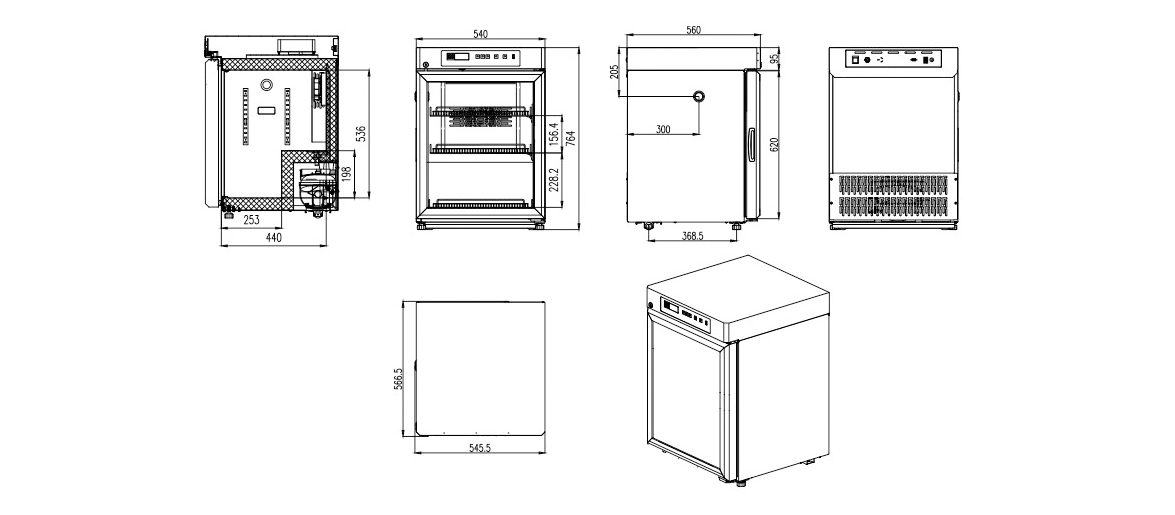

YC130L undercounter medicine refrigerator | dimension

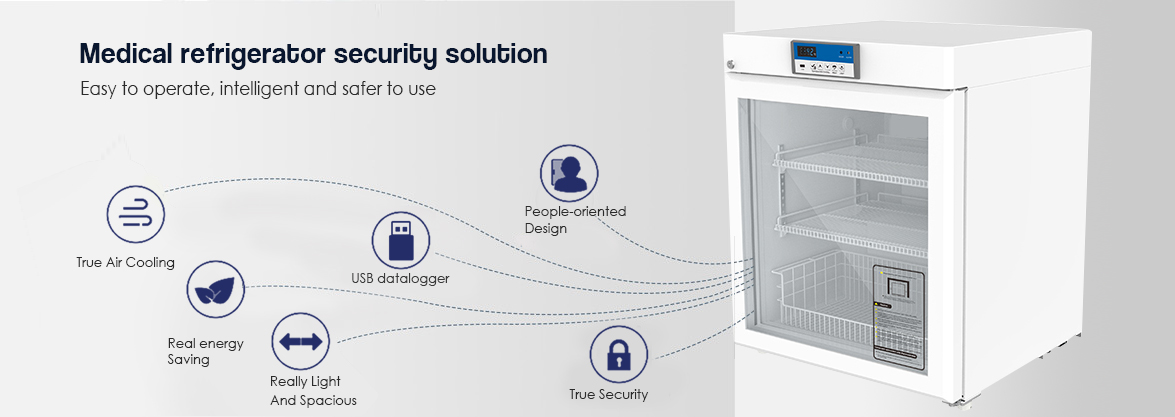

NW-YC130L medical refrigerator for vaccines | medical refrigeration security soltuion


NW-YC135L small biomedical refrigerator | applications

This small medicine refrigerator is for the storage of medicines, vaccines, and also suitable for the storage of researching specimens, biological products, reagents, and more. Excellent solutions for pharmacies, pharmaceutical factories, hospitals, disease prevention & control centers, clinics, and so on.

  • Previous:
  • Next:

  • Model NW-YC130L
    Capacity(L) 130 liter
    Internal Size(W*D*H)mm 554*450*383+554*318*205
    External Size(W*D*H)mm 650*625*810
    Package Size(W*D*H)mm 723*703*880
    NW/GW(Kgs) 51/61
    Temperature Range 2~8℃
    Ambient Temperature 16-32℃
    Cooling Performance 5℃
    Climate Class N
    Controller Microprocessor
    Display Digital display
    Compressor 1pc
    Cooling Method Air cooling
    Defrost Mode Automatic
    Refrigerant R600a
    Insulation Thickness(mm) 50
    External Material Powder coated material
    Inner Material  Aumlnum plate with spraying
    Shelves 3(coated steel wired shelf)
    Door Lock with Key Yes
    Lighting LED
    Access Port 1pc. Ø 25 mm
    Casters 2+2( levelers feet)
    Data Logging/Interval/Recording Time USB/Record every 10 minute / 2 years
    Door with Heater Yes
    Standard Accessory RS485,Remote alarm contact,Backup battery
    Temperature High/Low temperature,High ambient temperature,
    Electrical Power failure , Low battery,
    System Sensor error,Door ajar,Built-in datalogger USB Failure,Remote alarm
    Power Supply(V/HZ) 230±10%/50
    Rated Current(A) 0.94
    Options Accessory
    System Printer,RS232
