Product Gategory

  • Commercial large capacity beverage Coolers NW-KXG2240

Commercial large capacity beverage Coolers NW-KXG2240

Features:

  • Model:NW-KXG2240
  • Full tempered glass door version
  • Storage capacity: 1650L
  • Fan cooling-Nofrost
  • Upright four glass door merchandiser refrigerator
  • For commercial drink cooling storage and display
  • Two sides vertical LED light for standard
  • Adjustable shelves
  • Aluminum door frame and handle
  • 650mm Large capacity depth for beverage storage
  • Pure copper tube evaporator


Detail

Specification

Tags

Large-capacity high-speed freezer

Commercial large-capacity branded beverage refrigerators

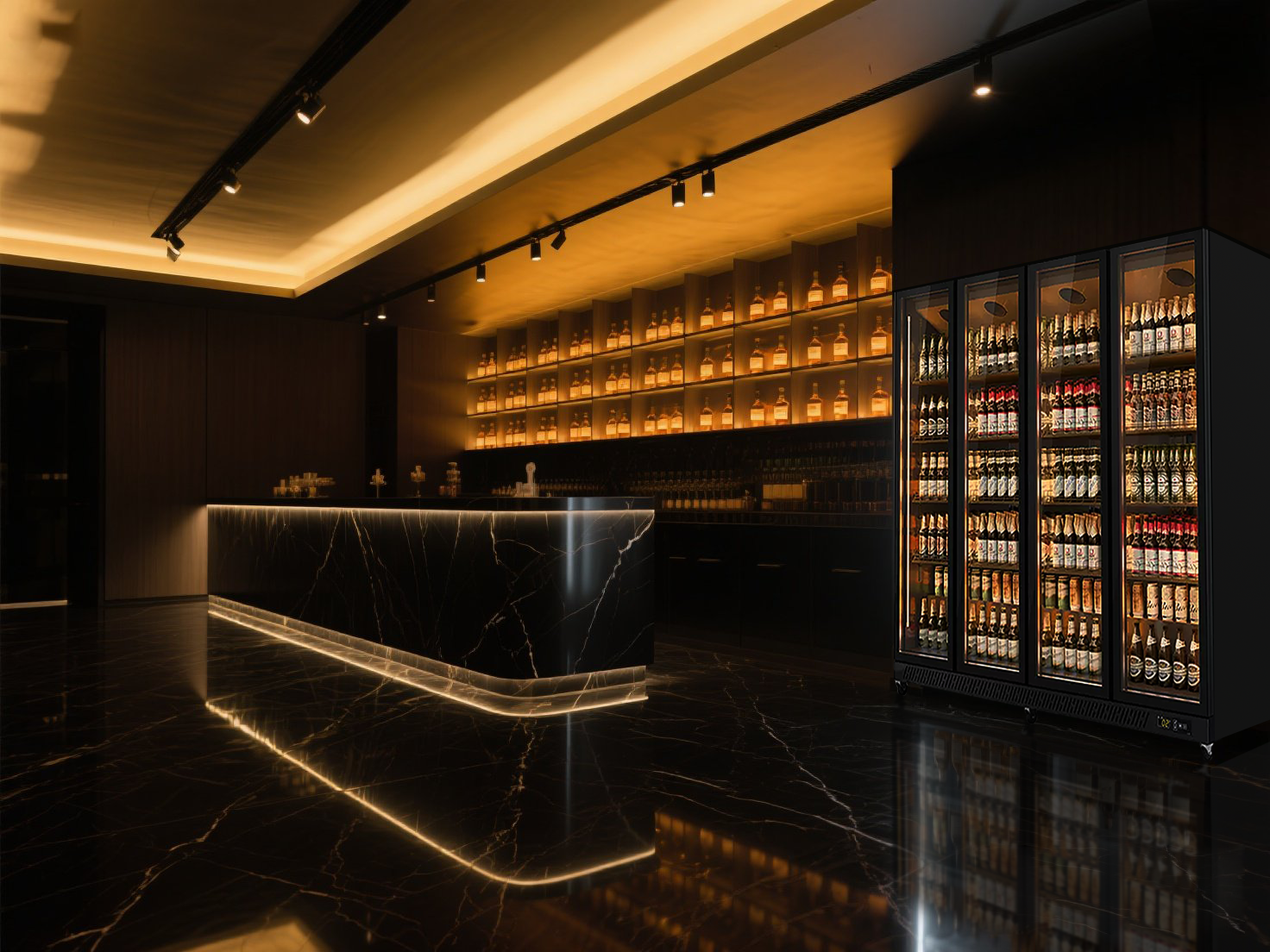

The NW brand large-capacity refrigerator is suitable for more than 6 scenarios such as bars, shopping malls, convenience stores, supermarkets, restaurants, and coffee shops. With a large capacity of 1650 liters, it can meet the daily needs of stores.

The cool black appearance supports customization of different appearances such as white, silver, and gold. The variable LED light colors can meet the atmosphere decoration in different scenarios.

Equipped with a branded compressor and refrigeration system, it has a relatively large refrigeration power, can quickly reduce the temperature inside the cabinet, and keep beverages and drinks within the appropriate refrigeration temperature range, such as 2 - 8 degrees Celsius.

The bottom is designed with roller cabinet feet, which is very convenient to move and use. You can adjust the position of the beverage cabinet at any time according to needs to adapt to different promotional activities or layout adjustment requirements.

fan rotates

A crucial part of the refrigeration cycle of the beverage cabinet. When the fan rotates, the mesh cover assists the orderly flow of air, playing an important role in maintaining a uniform temperature inside the cabinet and ensuring the refrigeration effect, which is related to beverage preservation and equipment energy efficiency.

The bottom ventilation area

The bottom ventilation area. The long slots are vents, which are used for the air circulation and heat dissipation inside the cabinet to ensure the stability of the refrigeration system. The metal parts may be related structural components such as door locks and hinges, which assist in the opening and closing and fixation of the cabinet door, maintain the cabinet's airtightness, and contribute to refrigeration and product preservation.

cabinet door handle

The area of the cabinet door handle. When the cabinet door is opened, the internal shelf structure can be seen. With a cool design, it can safely store items such as beverages. It ensures the functions of opening, closing and locking the cabinet door, maintains the airtightness of the cabinet body, and keeps items cold and fresh.

Evaporator

Evaporator (or condenser) components, consisting of metal coils (mostly copper pipes, etc.) and fins (metal sheets), achieve the refrigeration cycle through heat exchange. The refrigerant flows inside the coils, and the fins are used to increase the heat dissipation/absorption area, ensuring refrigeration inside the cabinet and maintaining an appropriate temperature to preserve beverages.

  • Previous:
  • Next:
    • Model No Unit size(W*D*H) Carton size(W*D*H)(mm) Capacity(L) Temperature Range(℃) Refrigerant Shelves N.W/G.W(kgs) Loading 40′HQ Certification
    NW-KXG620 620*635*1980 670*650*2030 400 0-10 R290 5 95/105 74PCS/40HQ CE
    NW-KXG1120 1120*635*1980 1170*650*2030 800 0-10 R290 5*2 165/178 38PCS/40HQ CE
    NW-KXG1680 1680*635*1980 1730*650*2030 1200

    0-10

    R290

    5*3

    198/225

    20PCS/40HQ

    CE
    NW-KXG2240 2240*635*1980 2290*650*2030 1650

    0-10

    R290

    5*4

    230/265

    19PCS/40HQ

    CE
