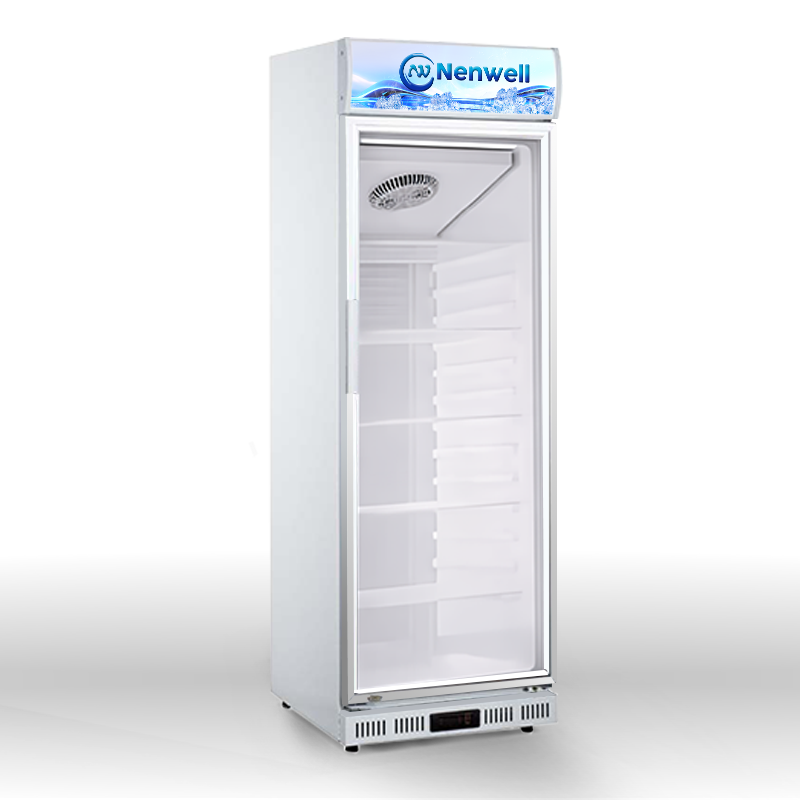

Commercial Upright Single Glass Door Display Chiller Fridge

Features:

  • Model: NW-LG230XF/ 310XF /252DF/ 302DF/352DF/402DF.
  • Storage capacity: 230/310/252/302/352/402 liters.
  • Refrigerant:R134a
  • Shelves:4
  • For commercial beverage storage and display.
  • Different size options are available.
  • High-performance and long lifespan.


Detail

Specification

Tags

LG series fridge

Commercial Glass Door Beverage Cabinet

Precisely developed for commercial scenarios, covering multiple specifications and models for adaptation. With a volume of 230 - 402L, it meets different display requirements. It uses R134a environmentally friendly refrigerant, combined with a high - efficiency evaporator and fan, achieving precise temperature control between 4 - 10℃. The hollowed - out shelves ensure cold air circulation, and the self - closing door tightly locks in the cold. With CE certification, it helps supermarkets create a professional and energy - saving beverage fresh - keeping and display space.

In terms of performance, it empowers commercial operations with professional performance. The refrigeration system is highly efficient and stable. Through a precision finned evaporator and a circulating fan, it realizes uniform cold coverage. The self - closing door structure reduces energy consumption, the hollowed - out metal shelves optimize the air flow, and the reasonable loading capacity of 40’HQ improves logistics efficiency, building a constant - temperature, fresh - keeping, and easy - to - display beverage storage and display solution for supermarkets.

NW-SC105_07-1

This is a single-door fridge. It uses tempered glass and air-cooling technology to avoid problems such as frosting and fogging. The height of the four-layer shelves can be adjusted to adapt to the placement of different materials.

NW-SC105_07-2

This single glass door fridge holds a heating device for removing condensation from the glass door while there is rather high humidity in the ambient environment. There is a spring switch at the side of the door, the interior fan motor will be turned off when the door is opened and turned on when the door is closed.

cooler compressor

This single door beverage fridge operates with a temperature range between 0°C to 10°C, it includes a high-performance compressor that uses environmental-friendly R134a/R600a refrigerant, greatly keeps the interior temperature precise and constant, and help improves refrigeration efficiency and reduces energy consumption.

NW-SC105_07-10

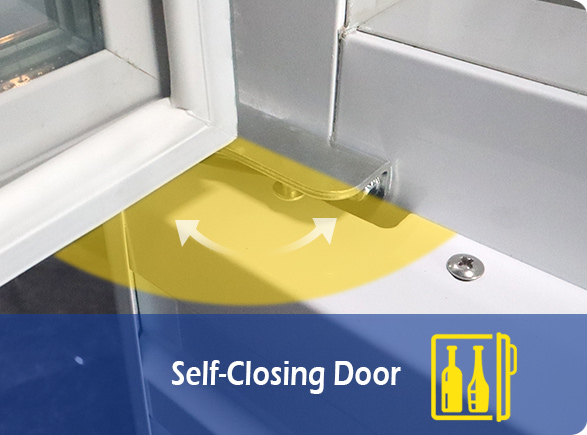

The glass front door can not only allow customers to see the stored items at an attraction, and also can close automatically, as this single door beverage fridge comes with a self-closing device, so you don’t need to worry that it’s accidentally forgotten to close.

Supermarket beverage cabinet
  • Previous:
  • Next:
    • Model No Unit size(WDH)(mm) Carton size(WDH)(mm) Capacity(L) Temperature Range(°C) Refrigerant Shelves N.W/G.W(kgs) Loading 40’HQ Certification
    NW-LG230XF 530*635*1721 585*665*1771 230 4-8 R134a 4 56/62 98PCS/40HQ CE
    NW-LG310XF 620*635*1841 685*665*1891 310 4-8 R134a 4 68/89 72PCS/40HQ CE
    NW-LG252DF 530*590*1645 585*625*1705 252 0-10 R134a 4 56/62 105PCS/40HQ CE
    NW-LG302DF 530*590*1845 585*625*1885 302 0-10 R134a 4 62/70 95PCS/40HQ CE
    NW-LG352DF 620*590*1845 685*625*1885 352 0-10 R134a 5 68/76 75PCS/40HQ CE
    NW-LG402DF 620*630*1935 685*665*1975 402 0-10 R134a 5 75/84 71PCS/40HQ CE
