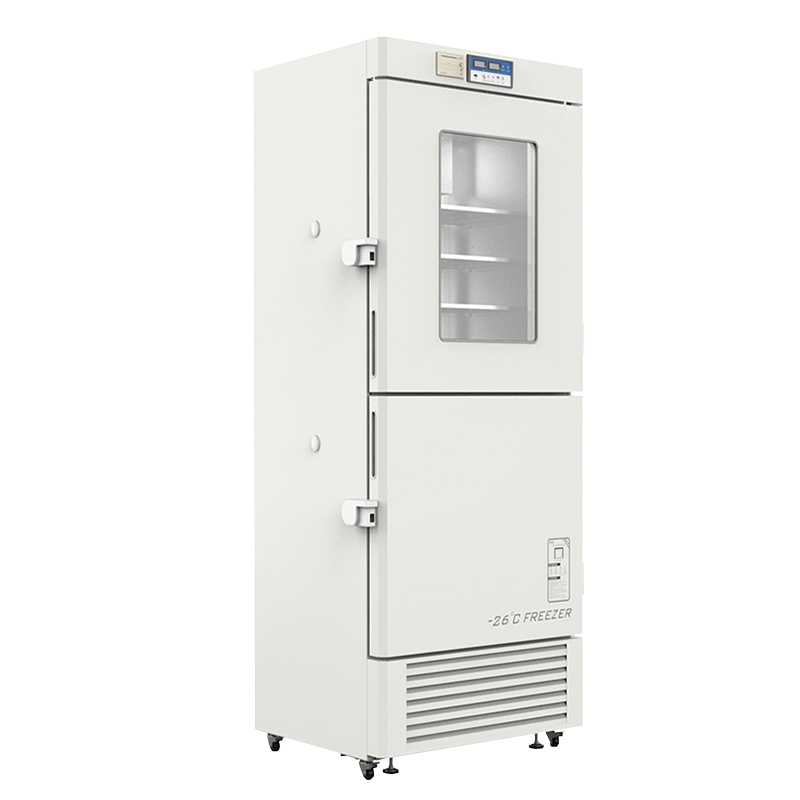

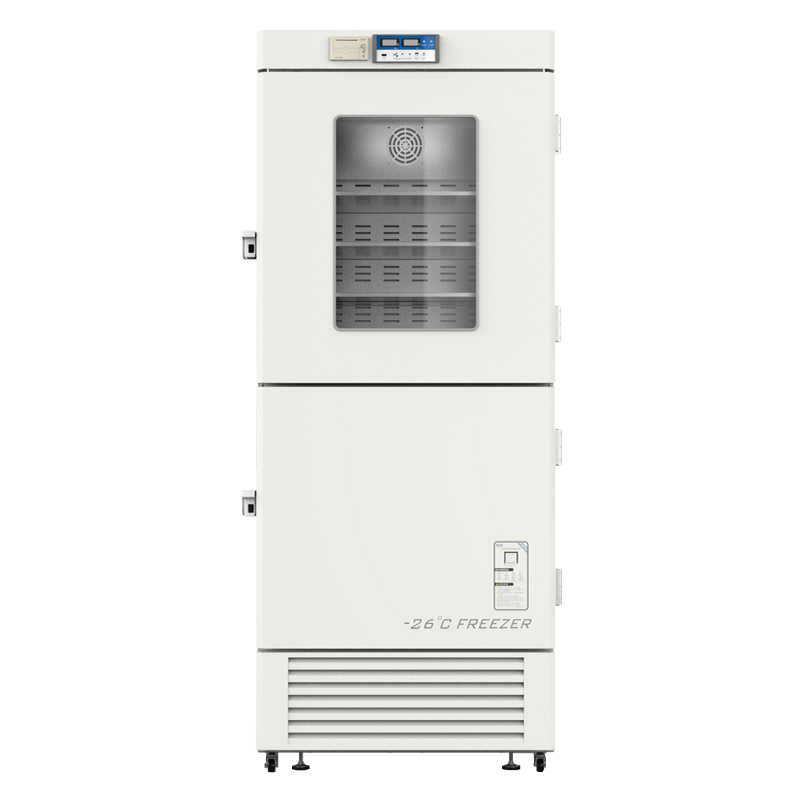

Laboratory Combo Fridge Combined with Freezer (NW-YCDEL519)

Features:

Laboratory Combo Fridge Combined with Freezer NW-YCDEL519, dedicated by professional manufacturer Nenwell factory being well up to international standards for medical and laboratory, with dimensions 910*740*1972 mm, holding 519L / 137 gal inner capacity.


Detail

Tags

Double door Lab Freezer and Combination Refrigerator (NW-YCDEL450)

Double door Lab Freezer and Combination Refrigerator NW-YCDEL450, dedicated by professional manufacturer Nenwell factory being well up to international standards for medical and laboratory, with dimensions 810*735*1960 mm, holding 450L / 119 gal inner capacity.


|| High efficiency  ||  Energy - saving ||  Safe and reliable  ||  Smart control  ||

Instruction to Blood Storage

Storage temperature of whole blood :2ºC~6ºC.
storage time of whole blood containing ACD-B and CPD was 21 days.The whole blood preservation solution containing CPDA-1(containing adenine) was preserved for 35 days.When using other blood preservation solutions, the storage period shall be carried out according to the instructions.



Product Description

• High-efficiency refrigerating system

• High-precision computerized temperature control system
• Comprehensive security system
• Separate control of upper refrigeration and lower freezer
• Direct cooling and electronic temperature control



  • Combination refrigerator freezer with upper 2°C ~ -8°C and lower-10~-26ºC
  • Separate control of upper refrigeration chamber and lower freezing chamber with separate compressors
  • Direct cooling and electronic temperature control for fast refrigeration and constant temperature
  • Equipped with sheet metal refrigerated drawers and acrylic plates
  • Digital temperature display to control temperature precisely and monitor operating status clearly
  • Ensure safe sample storage with inter-room independent door lock and independent external padlock
  • The inner material with stainless steel and three layers stainless steel clapboard
  • Tube-type condenser and built-in type evaporator work well to keep the temperature in the cabinet
  • The lower freezing chamber is equipped with drawers and the refrigeration chamber is equipped with steel wire shelves
  • LED lighting in the cabinet of the combination refrigerator freezer provides great visibility
  • The combination refrigerator freezer is equipped with casters at the bottom for conveniently movement and placement
  • Standard with Build-in USB datalogger for temperature data recording





Nenwell 2ºC~8ºC/-10ºC~-26ºC medical grade refrigerator freezer or vaccine storage refrigerator freezer NW-YCDEL300 comes with upper refrigeration and lower freezing separately control. This fridge freezer combo adopts 2 compressors and CFC-free refrigeration, ensuring high-efficiency and energy-saving. And it can ensure fast refrigeration and separately control of upper refrigeration chamber and lower freezing chamber. We design the thermal insulation with thicker insulation layer and CFC-free polyurethane foam technology for better insulation effect. The digital temperature display can indicate operating status clearly, and you can set the high temperature or low temperature alarm points regarding to your needs.



High-efficiency Refrigerating System
This combination refrigerator freezer is equipped with high-efficiency compressors for upper refrigeration chamber and lower freezing chamber. And the refrigerant is environmentally friendly, which can ensure energy-saving and high-efficiency. The CFC polyurethane foaming technology and thicker insulation layer cam improve the effect of thermal insulation.



High-precision Computerized Temperature Control System
The temperature control system of this combination refrigerator freezer can display the humidity and temerature independently. And you are able to check and view the operating status clearly on the display. This medical grade refrigerator freezer allows you to set the temperature freely with upper temperature in the range of 2ºC~8ºC and lower temperature in a range of -10ºC~-26ºC.



Comprehensive Security System
It is also a secure vaccine storage refrigerator freezer for the in-built 8 audible and visual alarm system, including high ambient temperature alarm, highlow temperature alarm, sensor failure alarm, communication failure (USB) data download failure alarm, low battery alarm, door ajar alarm, power off alarm, and data logging function not enabled alarm, which ensure safer sample storage.

Combined-Refrigerator-Freezer-YCD-EL300
Laboratory-fridge-combined-with-Freezer-brand and manufacturer
labotratory-combined refrigerator with freezer

Technical Specificaion of Laboratory Refrigerator
NW-YCDEL519



Model NW-YCDEL519
Cabinet Type Upright
Capacity(L) 519,R:323,F:196
Internal Size(W*D*H)mm R:750*610*740,F:650*560*565
External Size(W*D*H)mm 910*740*1972
Package Size(W*D*H)mm 990*855*2140
NW/GW(Kgs) 186/215
Temperature Range R:2~8ºC,F:-10~-26ºC
Ambient Temperature 16-32ºC
Cooling Performance R:5ºC, F:-23ºC
Climate Class N
Controller Microprocessor
Display Digital display
Compressor 2pcs
Cooling Method R: Forced air cooling , F:Direct cooling
Defrost Mode R:Automatic, F:Manual
Refrigerant R600a
Insulation Thickness(mm)  R:50, F:100
External Material Spraying steel plate
Inner Material Stainless steel
Shelves R:3+1(stainless steel),F:6(ABS)
Door Lock with Key Y
Access Port 2pcs. Ø 25 mm
Casters 4(2 caster with brake)
High/low temperature Y
High ambient temperature Y
Door ajar Y
Power failure Y
Sensor error Y
Low battery Y
Communication failure Y
Power Supply(V/HZ) 220-240/50
Power(W) 306
Power Consumption(KWh/24h) 3.76
Rated Current(A) 2.38
RS485 Y
Nenwell Blood Bank Refrigerator Series



Model No Temp. Range External Capacity(L) Capacity
(400ml blood bags)
Refrigerant Certification Type
Dimension(mm)
NW-HYC106 4±1ºC 500*514*1055 106   R600a CE Upright
NW-XC90W 4±1ºC 1080*565*856 90   R134a CE Chest
NW-XC88L 4±1ºC 450*550*1505 88   R134a CE Upright
NW-XC168L 4±1ºC 658*772*1283 168   R290 CE Upright
NW-XC268L 4±1ºC 640*700*1856 268   R134a CE Upright
NW-XC368L 4±1ºC 806*723*1870 368   R134a CE Upright
NW-XC618L 4±1ºC 812*912*1978 618   R290 CE Upright
NW-HXC158 4±1ºC 560*570*1530 158   HC CE Vehicle-mounted
NW-HXC149 4±1ºC 625*820*1150 149 60 R600a CE/UL Upright
NW-HXC429 4±1ºC 625*940*1830 429 195 R600a CE/UL Upright
NW-HXC629 4±1ºC 765*940*1980 629 312 R600a CE/UL Upright
NW-HXC1369 4±1ºC 1545*940*1980 1369 624 R600a CE/UL Upright
NW-HXC149T 4±1ºC 625*820*1150 149 60 R600a CE/UL Upright
NW-HXC429T 4±1ºC 625*940*1830 429 195 R600a CE/UL Upright
NW-HXC629T 4±1ºC 765*940*1980 629 312 R600a CE/UL Upright
NW-HXC1369T 4±1ºC 1545*940*1980 1369 624 R600a CE/UL Upright
NW-HBC4L160 4±1ºC 600*620*1600 160 180 R134a   Upright

stericox blood refrigerator
