Hospital Tabletop Refrigerator for Biomedical Samples and Medicine Storage Use (NW-YC130L)

Features:

Nenwell Tabletop pharmacy Refrigerator NW-YC130L for hospital and clinic use. It’s equipped with perfect audible and visual alarms including High/Low temperature,High ambient temperature,Power failure, Low battery,Sensor error,Door ajar,Built-in datalogger USB Failure,Main board communication error,Remote alarm.


Detail

Tags

  • Perfect audible and visual alarms including High/Low temperature,High ambient temperature,Power failure , Low battery,Sensor error,Door ajar,Built-in datalogger USB Failure,Main board communication error,Remote alarm
  • The small medical refrigerator with 3high-quality steel wire shelves, the shelves are adjustable to any height for satisfying different requirements
  • Standard with build-in USB datalogger, remote alarm contact and RS485 interface for monitor system
  • 1 cooling fan inside, working while door is closed, stopped while the door is opened
  • The CFC-free polyurethane foam insulating layer is environmentally friendly
  • The electrical heating glass door filled with insert gas performs well in thermal insulation
  • The medical refrigerator is equipped with 2 sensors. When the primary sensor fails, the secondary sensor will be activated immediately
  • The door is equipped with a lock preventing from unauthorized opening and operation

countertop medical fridge

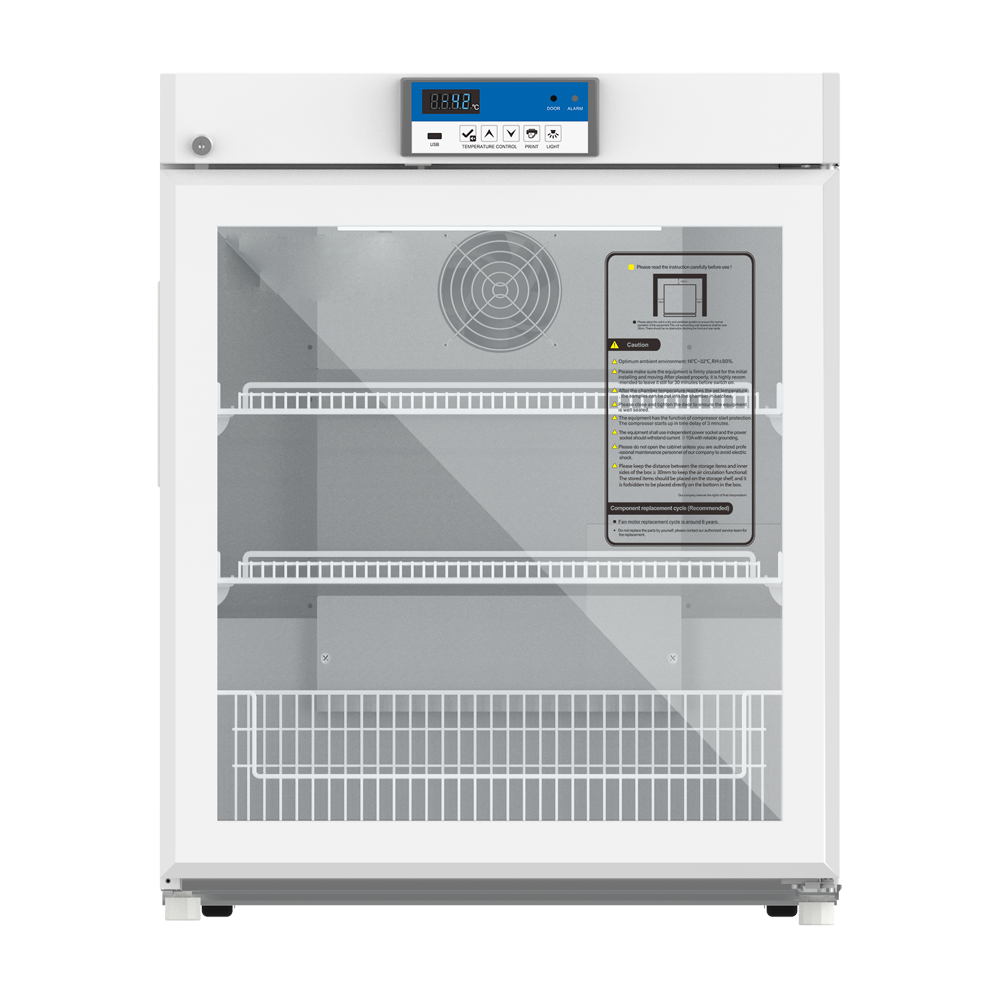

Tabletop Pharmacy Refrigerator 130L
Nenwell 2ºC~8ºC Tabletop pharmacy refrigerator  YC-130L gives you a brand new appearance and is designed in smart under counter size. This small undercounter medical refrigerator is equipped with intelligent temperature controller and brings out constant temperature. It has transparent double-layer tempered glass door with the features of anti-condensation and electrical heating. There are multiple alarm functions to ensure safety of storage. The complete air-cooling design of the vaccine refrigerator ensures no worry about frosting. You can apply the pharmaceutical refrigerator in laboratories, hospitals, pharmacies, disease prevention and control centers, health centers, pharmaceutical factories, medical facilities, and more.

Accurate Control System
This 2ºC~8ºC small medical fridge for medicine comes with high precision temperature control system with high sensitive sensors. And it can well keep the temperature inside the cabinet in the range of 2ºC~8ºC. We design the pharmaceutical refrigerator with high brightness digital temperature and humidity display for automatic temperature control and ensure the display accurately in 0.1ºC.

Powerful Refrigeration System
The small medical / vaccine refrigerator is equipped with brand new compressor and condenser, which is for better cooling performance and well keeps the temperature uniformity with in 1ºC. It is air cooling type with feature of auto-defrost. And the HCFC-FREE refrigerant brings out more effective refrigeration and ensures environmentally friendly.

Ergonomic Operation Design

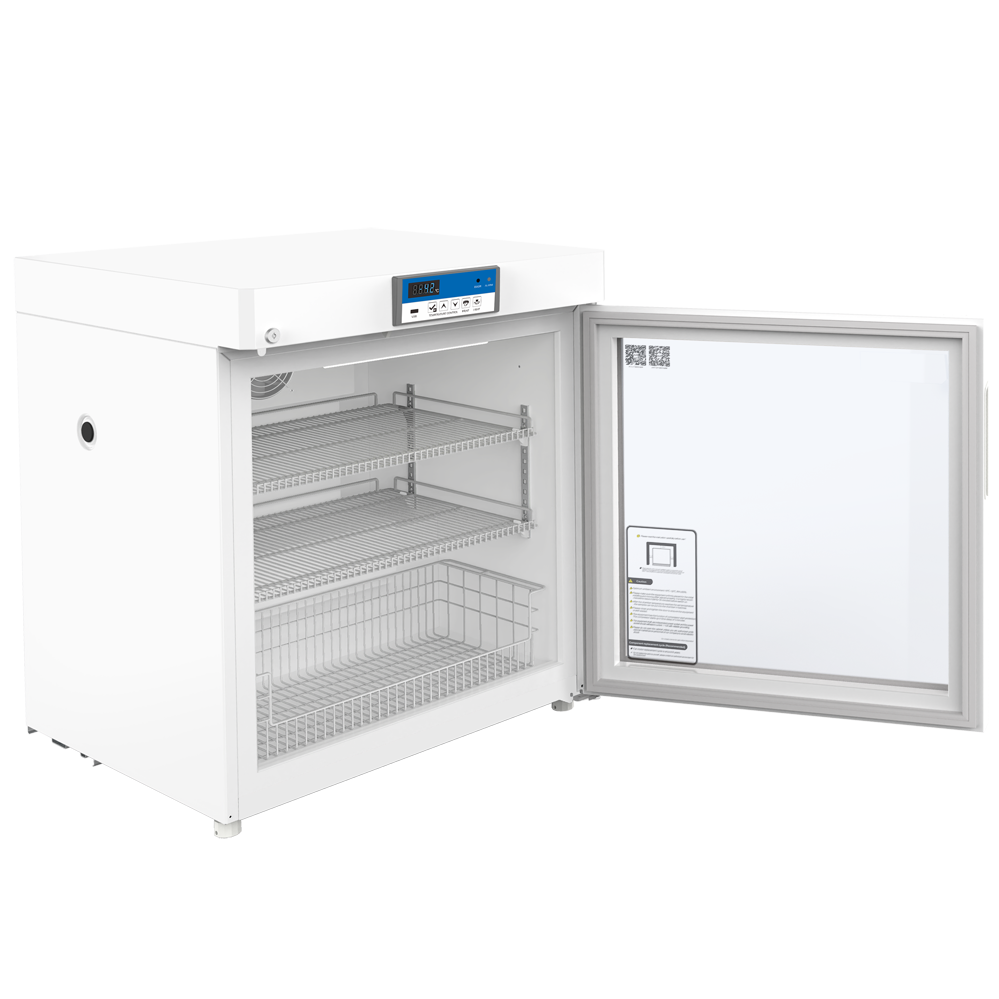

It has a front opening lockable door with full height handle. The inside of the pharmacy refrigerator is designed with lighting system for easy look. The light will turn on while door is opened, and the light will goes off while the door is closed. The cabinet is made of high quality steel, and the inner side material is Aluminum plate with spraying(Optional stainless steel), which is durable and easy to clean.

Nenwell Countertop Medicine Refrigerator Series

Model No Temp. Rang External
Dimension(mm)
Capacity(L) Refrigerant Certification
NW-YC55L 2~8ºC 540*560*632 55 R600a CE/UL
NW-YC75L 540*560*764 75
NW-YC130L 650*625*810 130
NW-YC315L 650*673*1762 315
NW-YC395L 650*673*1992 395
NW-YC400L 700*645*2016 400 UL
NW-YC525L 720*810*1961 525 R290 CE/UL
NW-YC650L 715*890*1985 650 CE/UL
(During application)
NW-YC725L 1093*750*1972 725 CE/UL
NW-YC1015L 1180*900*1990 1015 CE/UL
NW-YC1320L 1450*830*1985 1320 CE/UL
(During application)
NW-YC1505L 1795*880*1990 1505 R507 /

counter top Medical fridge
2~8ºC Nenwell Countertop Medicine Refrigerator 130L
Model NW-YC130L
  Capacity(L) 130
Internal Size(W*D*H)mm 554*510*588
External Size(W*D*H)mm 650*625*810
Package Size(W*D*H)mm 723*703*880
NW/GW(Kgs) 51/61
Performance
Temperature Range 2~8ºC
Ambient Temperature 16-32ºC
Cooling Performance 5ºC
Climate Class N
Controller Microprocessor
Display Digital display
Refrigeration
Compressor 1pc
Cooling Method Air cooling
Defrost Mode Automatic
Refrigerant R600a
Insulation Thickness(mm) L/R:48,B:50
Construction
External Material PCM
Inner Material Aumlnum plate with spraying/Stainless steel(Optional stainless steel)
Shelves 3 (coated steel wired shelf)
Door Lock with Key Yes
Lighting LED
Access Port 1pc. Ø 25 mm
Casters 2+2( leveling feet)
Data Logging/Interval/Recording Time USB/Record every 10 minutes / 2 years
Door with Heater Yes
Alarm
Temperature High/Low temperature, High ambient temperature
Electrical Power failure, Low battery
System Sensor failure, Door ajar, Built-in datalogger USB Failure, Communication failure
Accessories
Standard RS485, Remote alarm contact, Backup battery
