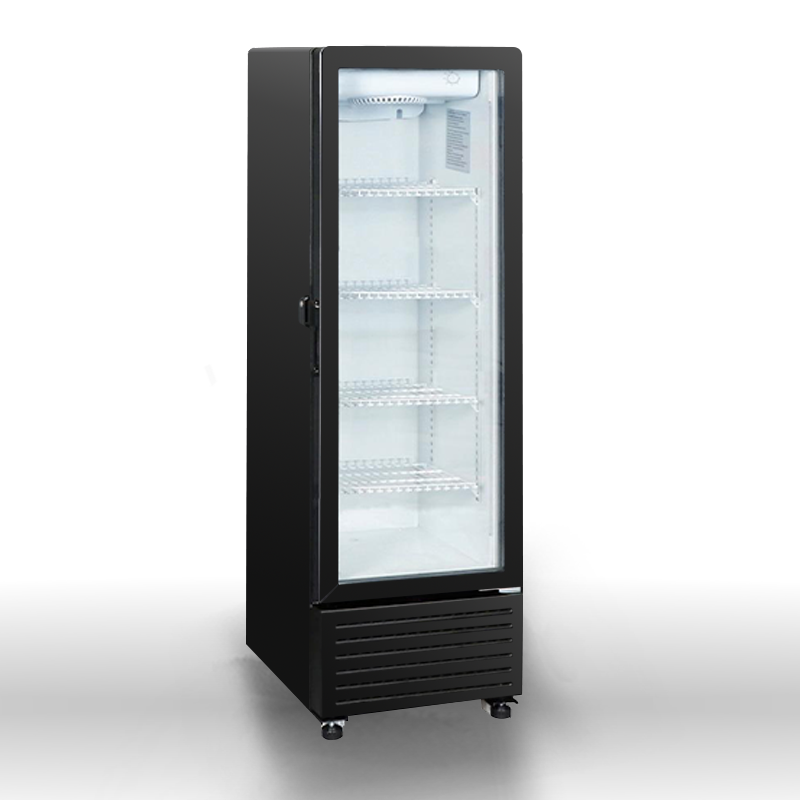

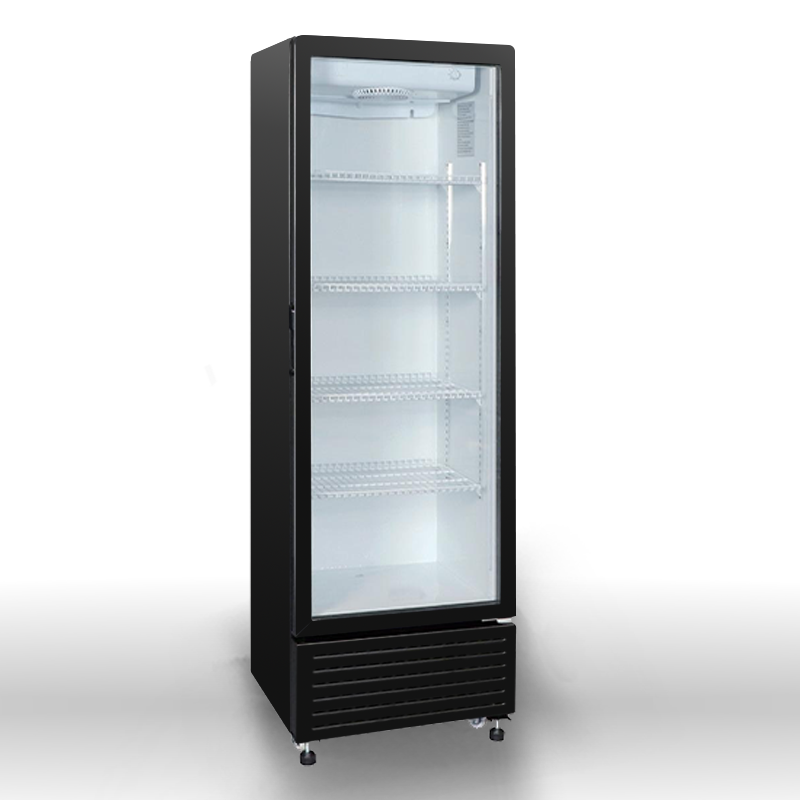

Top 3 glass door beverage display cabinet LSC series

Features:

  • Model:NW-LSC215W/305W/335W
  • Full tempered glass door version
  • Storage capacity: 230/300/360 liters
  • Fan cooling-Nofrost
  • Upright single  glass door merchandiser refrigerator
  • For commercial drink cooling storage and display
  • Internal LED lighting
  • Adjustable shelves


Detail

Specification

Tags

upright showcase

The Nenwell series beverage display cabinets cover multiple models (such as NW - LSC215W to NW - LSC1575F). The volume is suitable for different needs (230L - 1575L), and the temperature is stably controlled at 0 - 10℃ to ensure the freshness of beverages. The refrigerants used are R600a or the environmentally friendly R290, taking into account both refrigeration efficiency and environmental protection. The number of shelves ranges from 3 to 15, and the display space can be flexibly adjusted. The net weight of a single unit is 52 - 245kg, and the gross weight is 57 - 284kg. The loading capacity of a 40'HQ varies according to the model (14 - 104PCS), meeting different distribution scales. The simple appearance is suitable for multiple scenarios. It has passed CE and ETL certifications. In commercial displays (such as supermarkets and convenience stores), the transparent doors and LED lights highlight the beverages. With an efficient compressor and a reasonable air duct design, it achieves uniform refrigeration and low - noise operation. It not only helps merchants optimize display and marketing but also ensures the quality and storage efficiency of beverages. It is a practical device for commercial beverage display and storage.

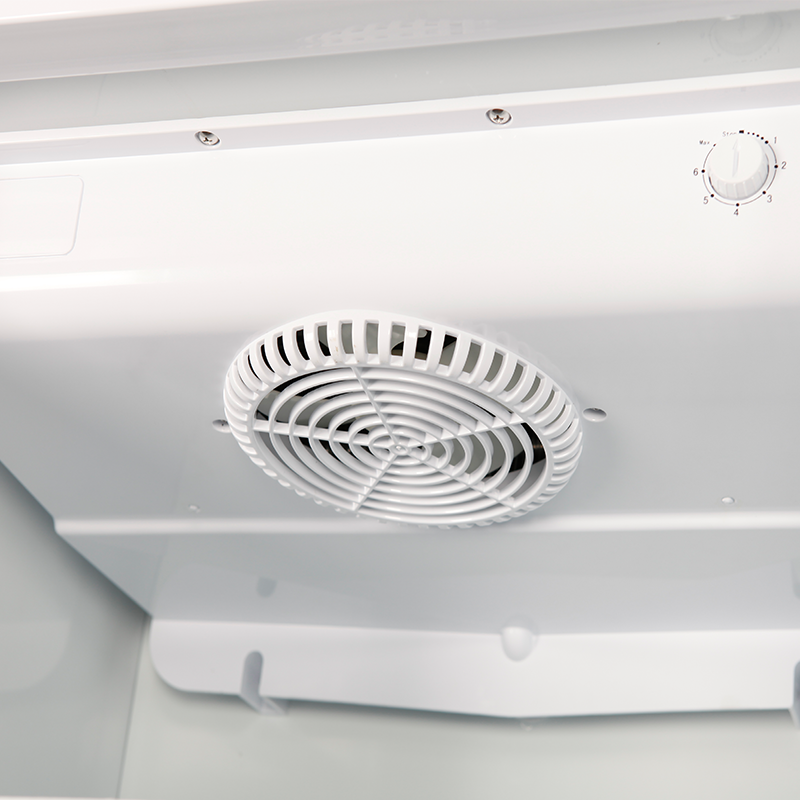

fan

The air outlet of the fan in the commercial glass - door beverage cabinet. When the fan is running, air is discharged or circulated through this outlet to achieve heat exchange in the refrigeration system and air circulation inside the cabinet, ensuring uniform refrigeration of the equipment and maintaining an appropriate refrigeration temperature.

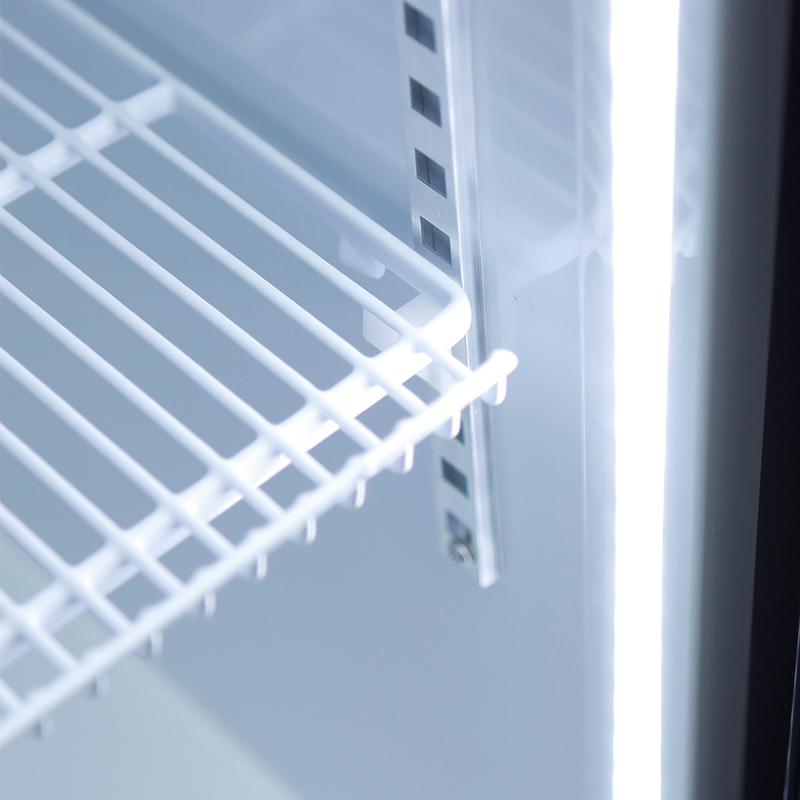

light

The LED light is designed to be embedded in the top of the cabinet or the edge of the shelf in a hidden layout, and the light can evenly cover the interior space. It has significant advantages. It uses energy - saving LED light sources, which have low power consumption but high brightness, accurately illuminating the beverages, highlighting their color and texture. It can create a warm and cozy atmosphere with warm light and highlight a refreshing feeling with cold light, adapting to the style and scene requirements of different beverages. It has a long lifespan and strong stability, reducing the cost of frequent replacements. Moreover, it emits less heat, does not affect the temperature control inside the cabinet, and helps maintain the freshness of the beverages. From display to practical use, it comprehensively enhances the value of the beverage cabinet.

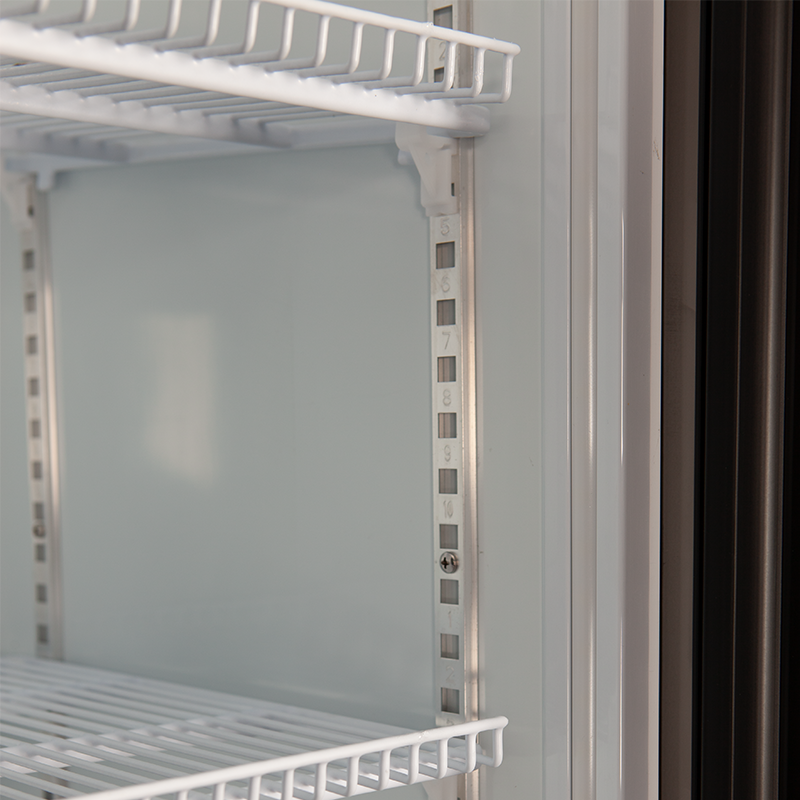

The shelf supports inside the beverage refrigerator

The shelf support structure inside the beverage cooler. The white shelves are used to place beverages and other items. There are slots on the side, allowing for flexible adjustment of the shelf height. This makes it convenient to plan the internal space according to the size and quantity of the stored items, achieving reasonable display and efficient utilization, ensuring uniform cooling coverage, and facilitating the preservation of items.

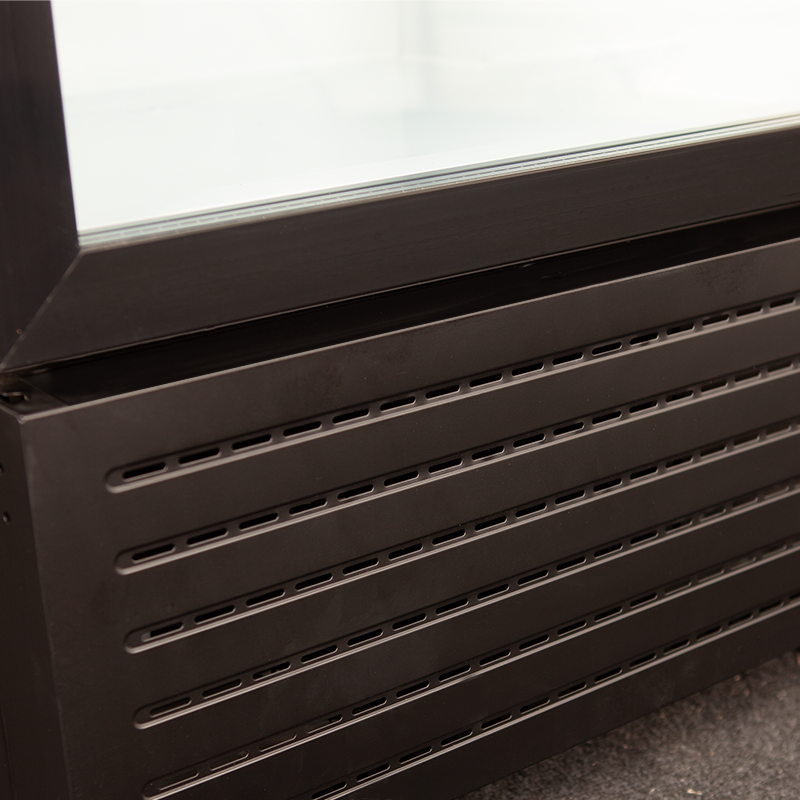

Heat dissipation holes

The principle of ventilation and heat dissipation of the beverage cabinet is that the ventilation openings can effectively discharge the heat of the refrigeration system, maintain a suitable refrigeration temperature inside the cabinet, ensure the freshness of beverages. The grille structure can block dust and debris from entering the interior of the cabinet, protect the refrigeration components, and extend the service life of the equipment. A reasonable ventilation design can be integrated with the appearance of the cabinet without destroying the overall style, and it can meet the needs of commodity display in scenarios such as supermarkets and convenience stores.

  • Previous:
  • Next:
    • Model No Unit size(WDH)(mm) Carton size(WDH)(mm) Capacity(L) Temperature Range(℃) Refrigerant Shelves N.W/G.W(kgs) Loading 40′HQ Certification
    NW – LSC215W 535*525*1540 615*580*1633 230 0 – 10 R600a 3 52/57 104PCS/40HQ CE,ETL
    NW – LSC305W 575*525*1770 655*580*1863 300 0 – 10 R600a 4 59/65 96PCS/40HQ CE,ETL
    NW – LSC355W 575*565*1920 655*625*2010 360 0 – 10 R600a 5 61/67 75PCS/40HQ CE,ETL
    NW – LSC1025F 1250*740*2100 1300*802*2160 1025 0 – 10 R290 5*2 169/191 27PCS/40HQ CE,ETL
    NW – LSC1575F 1875*740*2100 1925*802*2160 1575 0 – 10 R290 5*3 245/284 14PCS/40HQ CE,ETL
