Medical -86ºC Ultra Low Temperature Freezer with dual Compressor and Precise Temp Control

Features:

Medical -86ºC Ultra Low Temperature Freezer with dual Compressor and Precise Temp Control

  • Model.: NW-DWHL678SA.
  • Capacity : 678 liters.
  • Temperature range: -40~-86℃.

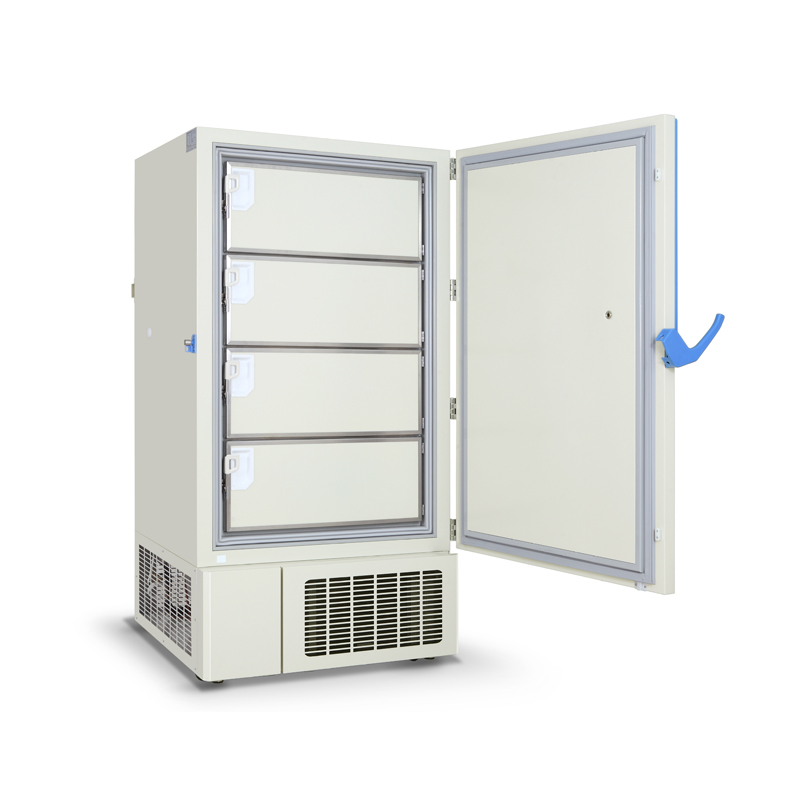

  • Upright single door type.
  • Keep the temperature stably with twin- compressor.
  • High-precision microcomputer control system.
  • Warning alarm for temperature errors, electrical errors and system errors..
  • 2-layer heat insulating foamed door.
  • High-performance VIP vacuum insulation material.
  • Door handle with mechanical lock.
  • 7″ HD Intelligent Screen Control System.
  • Human-oriented design.
  • High-performance refrigeration.
  • High-efficiency CFC-FREE mixture refrigerant.
  • Built-in USB interface for temperature data recorded.


Detail

Specifications

Tags

NW-DWHL398S Laboratory Ultra Low Temperature Cost-Effective Deep Freezers And Refrigerators Price For Sale | factory and manufacturers

This series of laboratory refrigerators and freezers offer 6 models for different storage capacities that include 398/528/678/778/858/1008 liters, operates with temperatures from -40℃ to -86℃, it’s an upright medical freezer that is suitable for freestanding placement. This ultra low temperature freezer includes a premium compressor, which is compatible with environmental-friendly CFC-free mixture refrigerant, helps reduce energy consumption, and improves refrigeration performance. The interior temperatures are controlled by an intelligent microprocessor, and it’s clearly displayed on a high-definition digital screen, allows you to monitor and set the temperature to fit the proper storage condition. This ultra-low medical deep freezer has an audible and visible alarm system to warn you when storage condition is out of abnormal temperature, the sensor fails to work, and other errors and exceptions may occur, greatly protect your stored materials from spoilage. The front door is made of stainless steel plate with a polyurethane foam layer that features perfect thermal insulation. With these beneficial features above, this freezer provides a great refrigeration solution for blood banks, hospitals, health and disease prevention systems, research institutions, colleges & universities, the electronic industry, biological engineering, laboratories in colleges & universities etc.

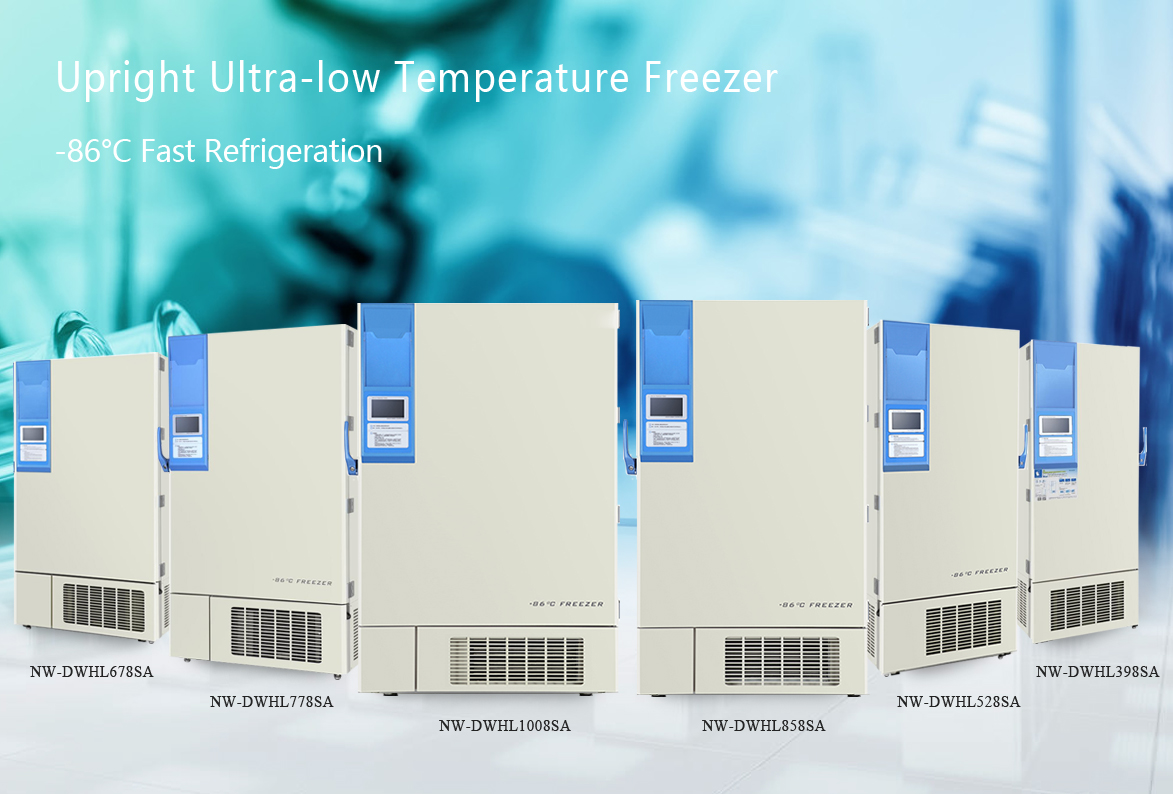

NW-DWHL398S 528S 678S 778S 858S 1008S

Details

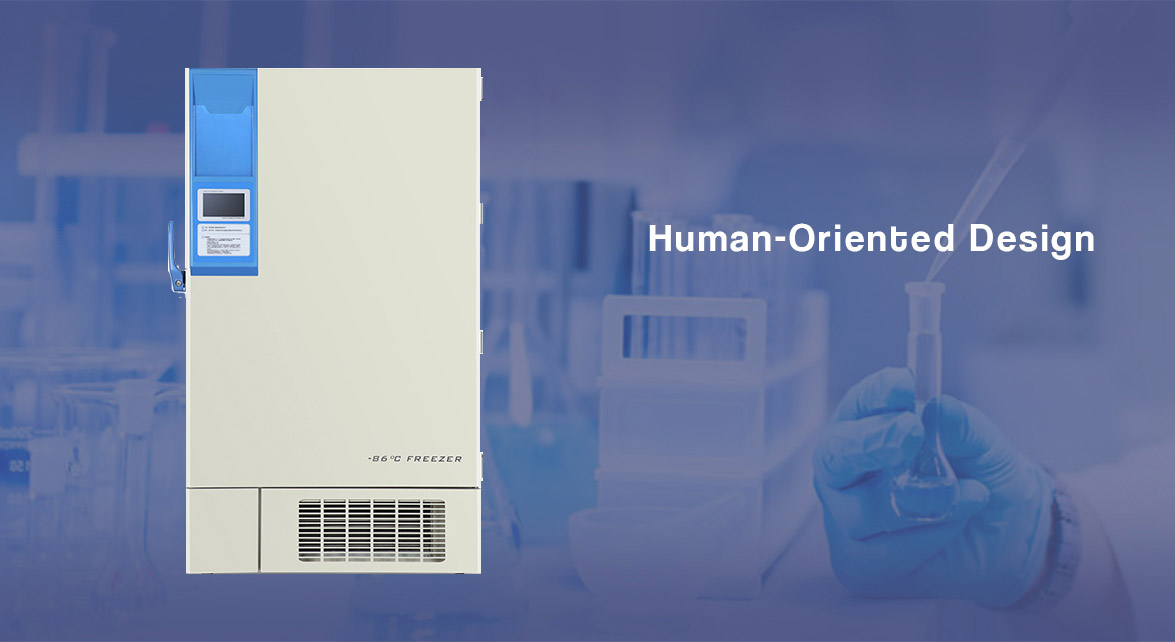

Human-Oriented Design | NW-DWHL398S Laboratory Refrigerators And Freezers

The door handle is designed as a rotation lock and a valve, that can release the internal vacuum to open the outer door more easily. The liner of the freezer is made of a premium galvanized steel plate, which is low-temperature tolerant for medical application, and it’s easy to clean and has a long lifespan. Universall casters and leveling feet at the bottom for more easy movement and fixation.

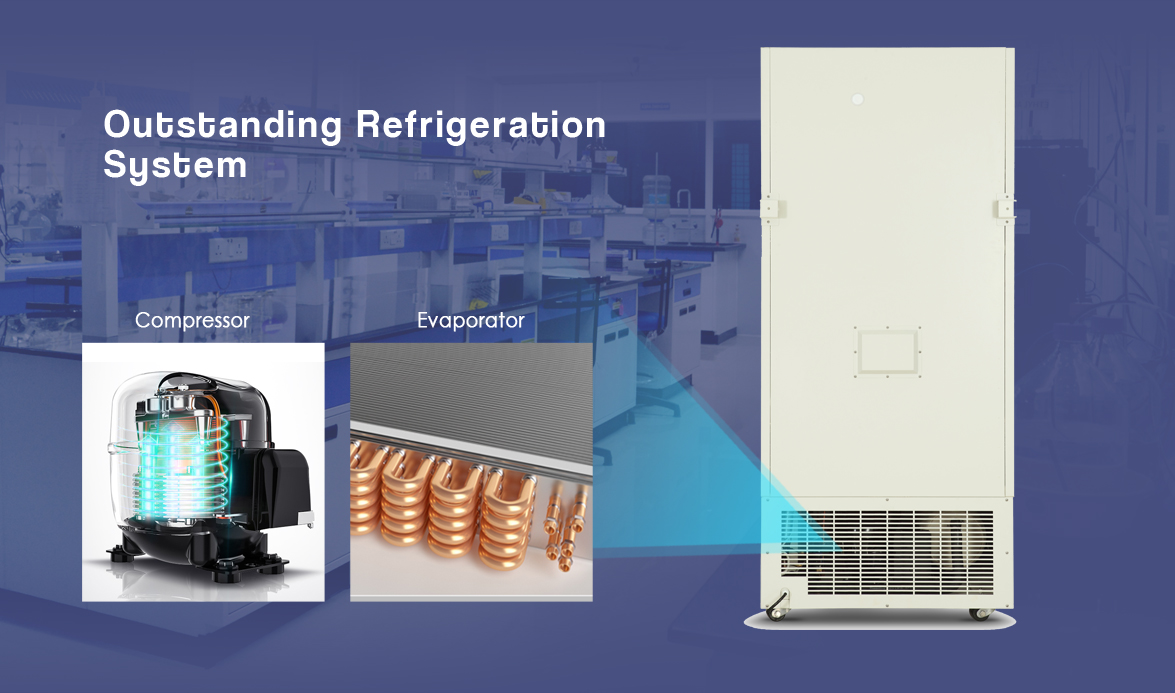

NW-DWHL 528SA

The laboratory refrigerators and freezers have a high-quality compressor and EBM fan, which are high-efficiency and low-energy. The finned condenser has a large size and is designed with a space between fins≤2mm, operating efficiently at heat dissipation. For models (NW-DWHL678S/778S/858S/1008S), they are equipped with double compressors, if one doesn’t work, another one would keep going with the stable temperature at -70℃. This freezer includes a VIP board to perform high-efficiency refrigeration. The interior of the door is surrounded by a hot gas pipe for defrosting.

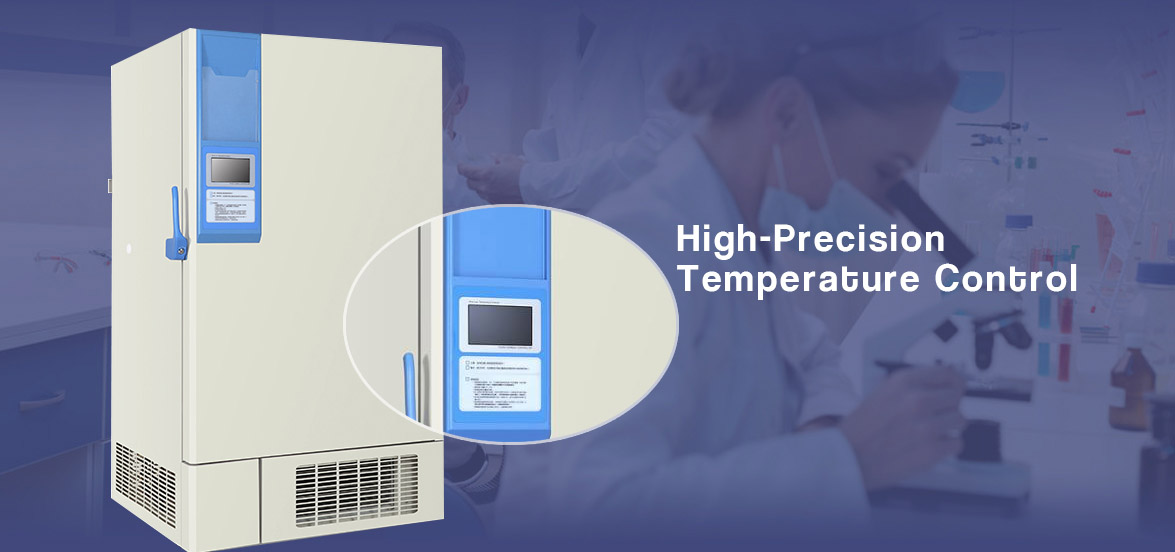

High-Precision Temperature Control | NW-DWHL398S Deep Freezer For Laboratory

The storage temperature of this medical upright freezer is controlled by a high-precision and user-friendly digital microprocessor, it’s an automatic type of temperature control module, which comes with platinum resistor sensors, the adjustable temperature range is between -40℃~-86℃. The 7’ HD touch screen digital screen features a high-definition display and user-friendly interface, it works with built-in and high-sensitive temperature sensors to display the interior temperature. A built-in USB interface for data storage.

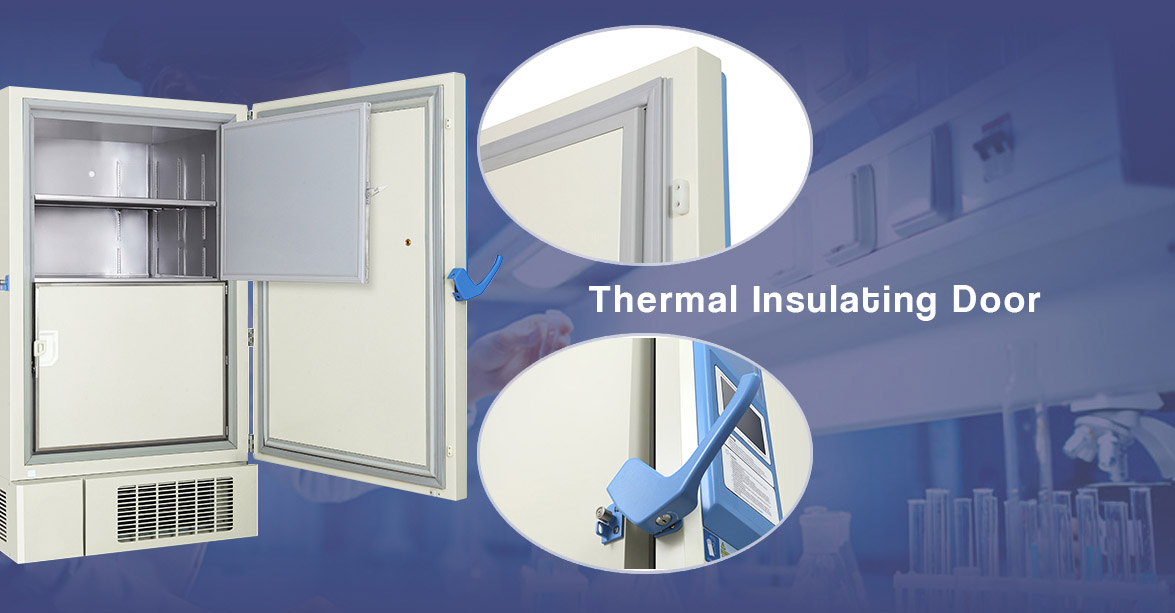

Thermal Insulating Door | NW-DWHL398S Medical Deep Freezer For Laboratory Price

The exterior door of this medical deep freezer includes 2 layers of polyurethane foam, and there are gaskets on the edge of both the exterior door and interior door. The 6 sides of the cabinet made of high-performance VIP vacuum insulation material. All these features greatly help this freezer improve the performance of thermal insulation.

Security & Alarm System | NW-DWHL398S Laboratory Refrigerators And Freezers

This freezer has an audible and visual alarm device, it works with some temperature sensors to detect the interior temperature. This system will alarm when the temperature goes high or low abnormally, door has left open, the sensor doesn’t work, and the power is off, or other problems would occur. This system also comes with a device to delay turn-on and prevent interval, which can ensure working reliability. Both touch screen and keypad are protected by password access, for preventing operation without permission.

Thermal Insulating Door | NW-DWHL398S Deep Freezer For Laboratory Price

The exterior door of this medical deep freezer includes 2 layers of polyurethane foam, and there are gaskets on the edge of both the exterior door and interior door. The 6 sides of the cabinet made of high-performance VIP vacuum insulation material. All these features greatly help this freezer improve the performance of thermal insulation.

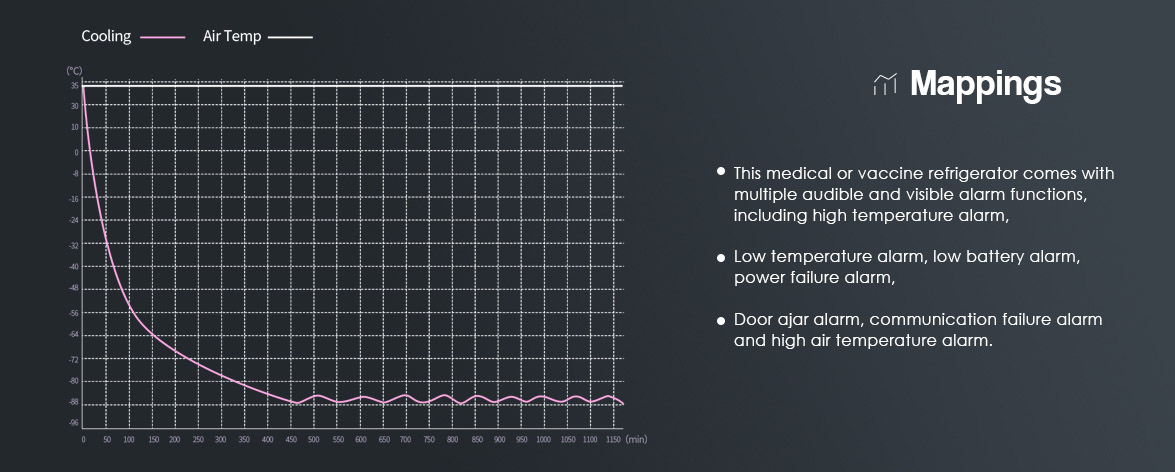

Mappings | NW-DWHL398S_20 Laboratory Refrigerators And Freezers

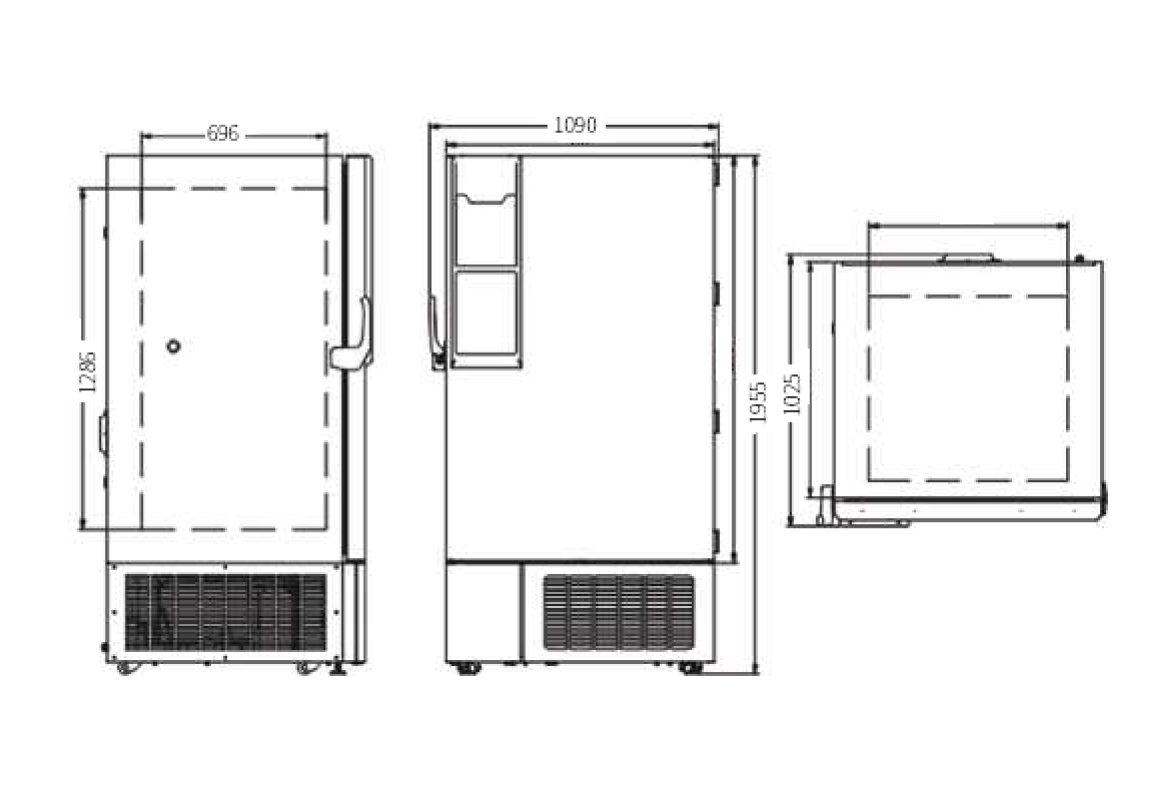

Dimensions

678-size

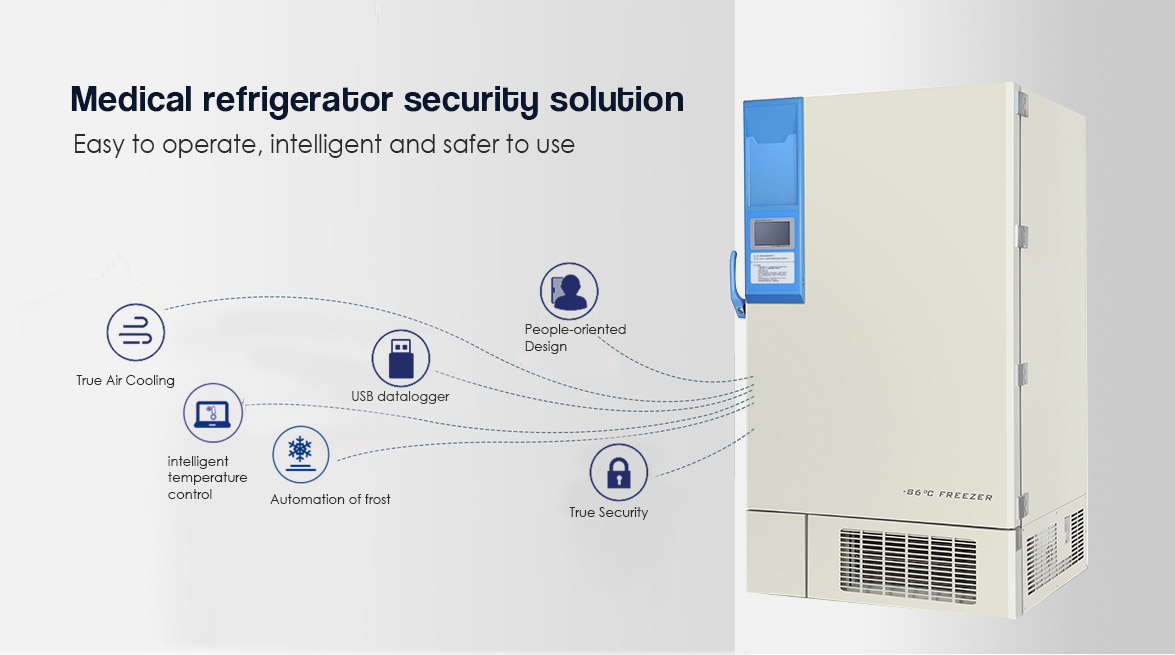

Medical Refrigerator Security Solution | NW-DWHL398S Medical Deep Freezer For Laboratory

Applications

application

This ultra low upright freezer is used for blood banks, hospitals, health and disease prevention systems, research institutions, colleges & universities, the electronic industry, biological engineering, laboratories in colleges & universities, etc.


  • Previous:
  • Next:

  • Model NW-DWHL678SA
    Capacity(L) 678
    Internal Size(W*D*H)mm 750*696*1286
    External Size(W*D*H)mm 1090*1025*1955
    Package Size(W*D*H)mm 1203*1155*2171
    NW/GW(Kgs) 330/435
    Performance
    Temperature Range -40~-86℃
    Ambient Temperature 16-32℃
    Cooling Performance -86℃
    Climate Class N
    Controller Microprocessor
    Display HD intelligent touch screen
    Refrigeration
    Compressor 2pc
    Cooling Method Direct Cooling
    Defrost Mode Manual
    Refrigerant Mixture gas
    Insulation Thickness(mm) 130
    Construction
    External Material High quality steel plates with spraying
    Inner Material Galvanized steel sheet
    Shelves 3(stainless steel)
    Door Lock with Key Yes
    External Lock Yes
    Access Port 3pcs. Ø 25 mm
    Casters 4+(2 leveling feet)
    Data Logging/Time/Quantity USB/Record every 2 minute / 10 years
    Backup Battery Yes
    Alarm
    Temperature High/Low temperature,High ambient temperature
    Electrical Power failure,low battery
    System

    Sensor failure,Main board communication error,Built-in datalogger USB failure,Condenser overheating alarm,Door ajar,System failure

    Electrical
    Power Supply(V/HZ) 230V /50
    Rated Current(A) 8.9
    Accessories
    Standard Remote alarm contact,RS485
    Options Chart recorder, CO2 backup system,Printer
